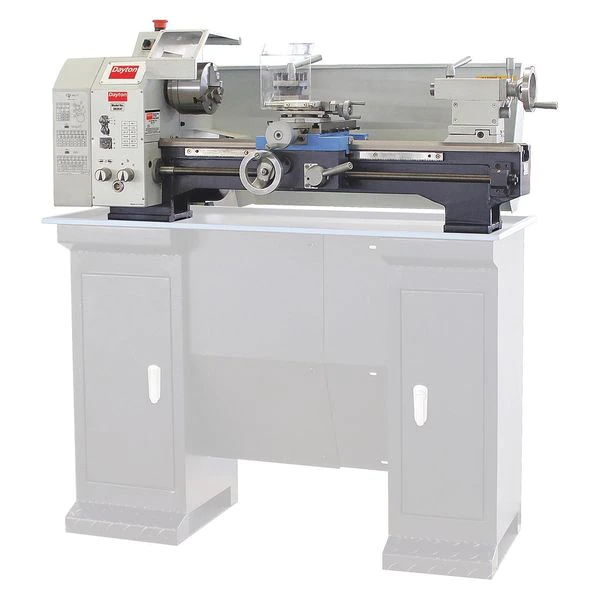

Dayton Lathe, 115 Volts, 1 HP, 60 Hz, 1 Phase
Original price was: $577.00.$92.99Current price is: $92.99.
Lathe, Distance Between Centers 21 5/8 in, Voltage 115V AC, Horsepower 1 hp, Min. Spindle Speed 150 RPM, Application Metal Turning, Overall Height 19 in, Overall Length 50 in, Overall Width 23 in, Max. Spindle Speed 2,400 RPM, Tailstock Taper MT2
Dayton #53UH17 Specifications
- Zoro #: G9188816
- Mfr #: 53UH17
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 1
- Phase: Single
- Voltage: 115V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 9-3/4
- Horsepower: 1 hp
- Compound Travel (In.): 4-1/3
- Cross Travel (In.): 4-3/4
- Includes: (3) Jaw Chucks, 4 Way Tool Post, Change Gear Kit, Lathe Chuck Guard, Splash Guard, Steady Center MT2 and MT4, Tool Post Chip Guard
- Overall Width: 23 in
- Carriage Travel (In.): 17
- Number of Threads (In.): 21
- Overall Length: 50 in
- Distance Between Centers (In.): 21-5/8
- Tailstock Taper: MT2
- Number of Threads (mm): 21
- Swing Over Cross Slide (In.): 4-1/3
- Spindle Speed (RPM): 150 to 2400
- Bed Width (In.): 3-1/2
- Thread Range (In.): 8 to 56
- Overall Height: 19 in
- Thread Range (mm): 0.2 to 4
- Number of Spindle Speeds: 6
- Longitudinal Feed Rates: 0.003 to 0.016
- Spindle Bore (In.): 1
- Cross Feed Rates: 0.008 to 0.016
- Features: Powerful, Maintenance Free Motor
- Tailstock Travel (In.): 2-1/2
- Hz: 60
- Spindle Taper: MT-4
- Max. Spindle Speed: 2,400 RPM
- Swing Over Cross Slide: 4.33 in
- Max. Metric Thread: 4 mm
- Spindle Bore: 1 in
- Application: Metal Turning
- Min. Spindle Speed: 150 RPM
- Number of Metric Threads: 21
- Min. Cross Feed: 0.0080 in
- Swing Over Bed: 9 3/4 in
- Distance Between Centers: 21 5/8 in
- Max. Cross Feed: 0.0160 in
- Bed Width: 3 1/2 in
- Min. Threads per Inch: 8
- Max. Threads per Inch: 56
- Min. Metric Thread: 0.2 mm
- Number of Inch Threads: 21
- Country of Origin (subject to change): China
