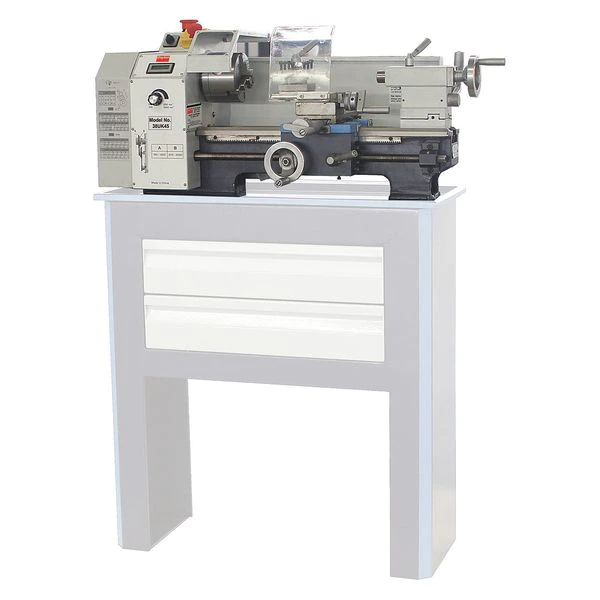

Dayton Lathe, 115 Volts, 7/8 HP, 60 Hz, 1 Phase
Original price was: $433.00.$95.99Current price is: $95.99.
Lathe, Distance Between Centers 12 in, Voltage 115V AC, Horsepower 7/8 hp, Min. Spindle Speed 150 RPM, Application Metal Turning, Overall Height 14 1/4 in, Overall Length 33 in, Overall Width 16 3/4 in, Max. Spindle Speed 2,500 RPM, Tailstock Taper MT2
Dayton #53UH16 Specifications
- Zoro #: G9188807
- Mfr #: 53UH16
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 7/8
- Phase: Single
- Voltage: 115V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 8
- Horsepower: 7/8 hp
- Overall Width: 16 3/4 in
- Number of Threads (In.): 45
- Swing Over Cross Slide (In.): 8″
- Spindle Taper: MT-3
- Longitudinal Feed Rates: 0.004 to 0.008
- Carriage Travel (In.): 10-1/2
- Number of Threads (mm): 34
- Includes: Change Gear Kit, Jaw Chuck, Quadruple Tool Holder, Splash Board and Chip Tray, Steady Center MT2 and MT3
- Spindle Speed (RPM): 150 to 2500
- Compound Travel (In.): 2-1/4
- Spindle Bore (In.): 3/4
- Overall Length: 33 in
- Tailstock Taper: MT2
- Cross Feed Rates: 0.0042, 0.008
- Tailstock Travel (In.): 2
- Number of Spindle Speeds: Variable
- Distance Between Centers (In.): 12
- Thread Range (In.): 1-3/32 to 5/16
- Bed Width (In.): 3-15/16
- Features: Hardened and Adjustable Accurate Tapper Roller Bearings
- Hz: 60
- Cross Travel (In.): 4
- Thread Range (mm): 0.4 to 3
- Overall Height: 14 1/4 in
- Min. Spindle Speed: 150 RPM
- Max. Cross Feed: 0.0080 in
- Number of Metric Threads: 12
- Distance Between Centers: 12 in
- Swing Over Cross Slide: 4 in
- Swing Over Bed: 8 in
- Min. Cross Feed: 0.0042 in
- Min. Metric Thread: 0.4 mm
- Max. Metric Thread: 3 mm
- Spindle Bore: 3/4 in
- Number of Inch Threads: 14
- Max. Spindle Speed: 2,500 RPM
- Bed Width: 3 15/16 in
- Application: Metal Turning
- Country of Origin (subject to change): China
