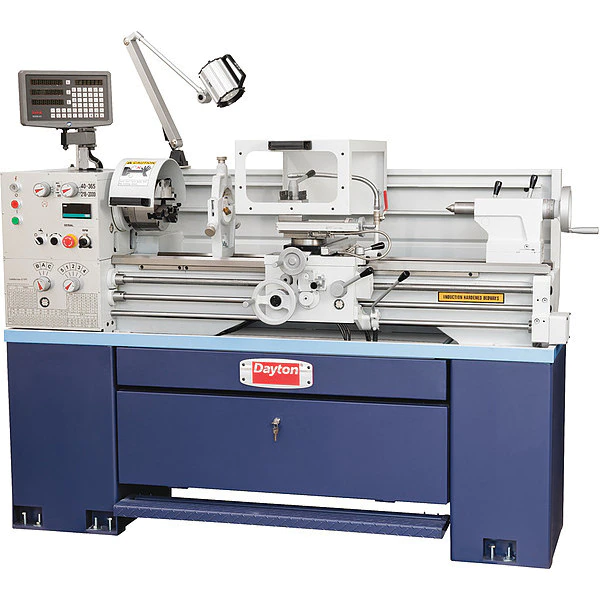

Dayton Lathe, 220V AC Volts, 2 HP, 60 Hz, 3 Phase
Original price was: $550.00.$94.99Current price is: $94.99.
Lathe, Distance Between Centers 36 in, Voltage 220V AC, Horsepower 2, Min. Spindle Speed 40 RPM, Application Metal Turning, Overall Height 45 9/32 in, Overall Length 64-9/16 in, Overall Width 28 15/64 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3
Dayton #499F38 Specifications
- Zoro #: G4548772
- Mfr #: 499F38
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 2
- Phase: Three
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 12
- Horsepower: 2 hp
- Overall Length: 64 9/16 in
- Includes: Follow Rest, Full Chuck Guard, Full Tool Post Guard, LED Work Lamp, Locking Tool Cabinet
- Features: CNC Style Lighting, Electromagnetic Foot Brake, LED rpm Readout, Variable Spindle Speeds
- Number of Spindle Speeds: Variable
- Tailstock Taper: MT3
- Hz: 60
- Overall Height: 45 9/32 in
- Overall Width: 28 15/64 in
- Distance Between Centers (In.): 36
- Application: Metal Turning
- Swing Over Cross Slide: 7 5/16 in
- Distance Between Centers: 36 in
- Swing In Gap: 17 1/2 in
- Number of Inch Threads: 34
- Max. Cross Feed: 0.0200 in
- Min. Metric Thread: 0.5 mm
- Number of Metric Threads: 21
- Spindle Bore: 1 9/16 in
- Bed Width: 7 1/2 in
- Max. Metric Thread: 10 mm
- Min. Threads per Inch: 2
- Min. Spindle Speed: 40 RPM
- Gap Length: 9 1/2 in
- Min. Cross Feed: 0.0007 in
- Swing Over Bed: 12 in
- Max. Spindle Speed: 2,000 RPM
- Max. Threads per Inch: 56
- Country of Origin (subject to change): China
