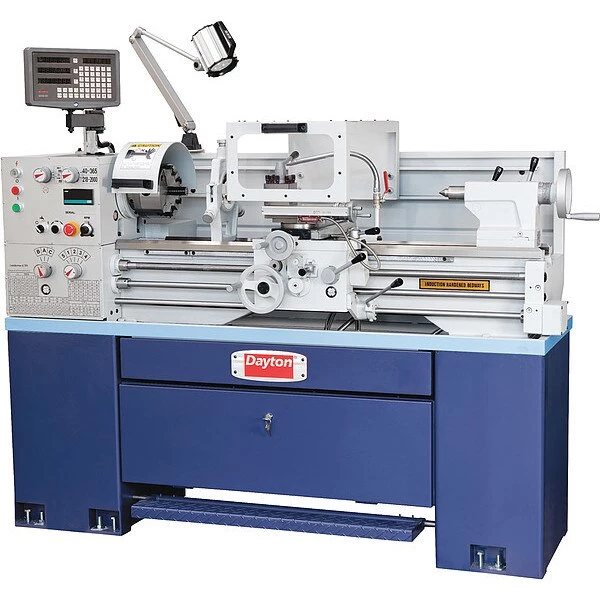

Dayton Lathe, 220V AC Volts, 3 HP, 60 Hz, 3 Phase
Original price was: $438.00.$96.99Current price is: $96.99.
Lathe, Distance Between Centers 40 in, Voltage 220V AC, Horsepower 3, Min. Spindle Speed 40 RPM, Application Metal Turning, Overall Height 45 9/32 in, Overall Length 68-1/2 in, Overall Width 28 15/64 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3
Dayton #499F39 Specifications
- Zoro #: G4549481
- Mfr #: 499F39
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 3
- Phase: Three
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 13
- Horsepower: 3 hp
- Distance Between Centers (In.): 40
- Overall Length: 68 1/2 in
- Hz: 60
- Features: CNC Style Lighting, Electromagnetic Foot Brake, LED rpm Readout, Variable Spindle Speeds
- Includes: Follow Rest, Full Chuck Guard, Full Tool Post Guard, LED Work Lamp, Locking Tool Cabinet
- Tailstock Taper: MT3
- Number of Spindle Speeds: Variable
- Overall Height: 45 9/32 in
- Overall Width: 28 15/64 in
- Max. Metric Thread: 10 mm
- Distance Between Centers: 40 in
- Max. Cross Feed: 0.0200 in
- Max. Threads per Inch: 56
- Swing Over Bed: 13 in
- Bed Width: 7 1/2 in
- Number of Metric Threads: 21
- Number of Inch Threads: 34
- Application: Metal Turning
- Min. Cross Feed: 0.0007 in
- Gap Length: 9 1/2 in
- Swing Over Cross Slide: 8 5/16 in
- Min. Metric Thread: 0.5 mm
- Min. Threads per Inch: 2
- Max. Spindle Speed: 2,000 RPM
- Spindle Bore: 1 9/16 in
- Min. Spindle Speed: 40 RPM
- Swing In Gap: 18 1/2 in
- Country of Origin (subject to change): China
