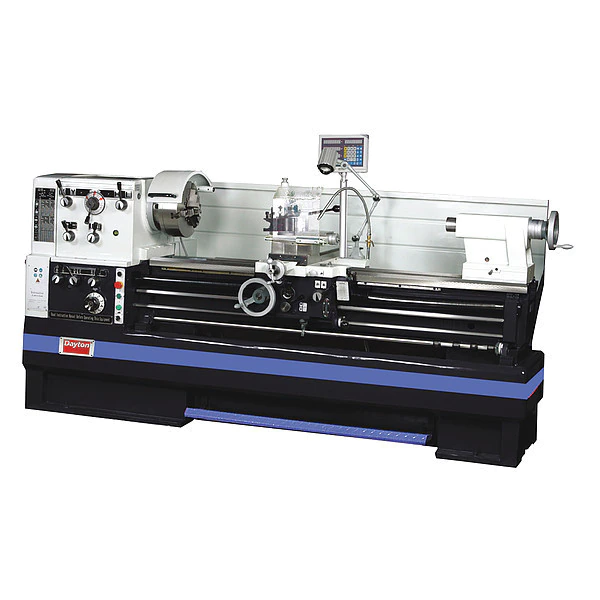

Dayton Lathe, 230 Volts, 10 HP, 60 Hz, 3 Phase
Original price was: $592.00.$96.99Current price is: $96.99.
Lathe, Distance Between Centers 80 in, Voltage 230, Horsepower 10, Min. Spindle Speed 30 RPM, Application Metal Turning, Overall Height 58 in, Overall Length 132 in, Overall Width 45 in, Max. Spindle Speed 1,920 RPM, Tailstock Taper MT5
Dayton #467K92 Specifications
- Zoro #: G7123879
- Mfr #: 467K92
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 10
- Phase: Three
- Voltage: 230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 22
- Horsepower: 10 hp
- Overall Length: 132 in
- Spindle Speed (RPM): 30 to 1920
- Includes: (2) 5MT Dead Centers, (4) Jaw Chucks, Chuck and Tool Post Safety Guard, Digital Readout, DRO, Follower Rest, Inch and Metric Gears for Threading, Splash Guard, Stand, Steady Rest, Work Light
- Thread Range (mm): 0.2 to 14
- Longitudinal Feed Rates: 0.002 to 0.067
- Overall Height: 58 in
- Number of Threads (In.): 60
- Number of Spindle Speeds: 12
- Bed Width (In.): 13-19/32
- Distance Between Centers (In.): 80
- Spindle Bore (In.): 4-1/8
- Overall Width: 45 in
- Number of Threads (mm): 53
- Tailstock Taper: MT5
- Spindle Taper: MT-7
- Swing Over Cross Slide (In.): 14
- Coolant Tank Capacity: 5 gal.
- Tailstock Travel (In.): 4
- Cross Travel (In.): 12
- Carriage Travel (In.): 12-3/8
- Cross Feed Rates: 0.001 to 0.033
- Gap Length (In.): 10-1/2
- Swing In Gap (In.): 31
- Thread Range (In.): 2 to 112
- Features: Emergency Stop Push Button, Hardened and Ground Bed Guide Ways, Right and Left Rotation On The Bed Slide
- Compound Travel (In.): 1-1/4
- Hz: 60
- Min. Threads per Inch: 2
- Swing Over Bed: 22 in
- Swing Over Cross Slide: 14 in
- Number of Inch Threads: 60
- Max. Threads per Inch: 112
- Distance Between Centers: 80 in
- Spindle Bore: 4 1/8 in
- Application: Metal Turning
- Number of Metric Threads: 53
- Max. Cross Feed: 0.0330 in
- Min. Spindle Speed: 30 RPM
- Min. Metric Thread: 0.2 mm
- Swing In Gap: 31 in
- Min. Cross Feed: 0.0010 in
- Bed Width: 13 19/32 in
- Max. Metric Thread: 14 mm
- Gap Length: 10 1/2 in
- Max. Spindle Speed: 1,920 RPM
- Country of Origin (subject to change): China
