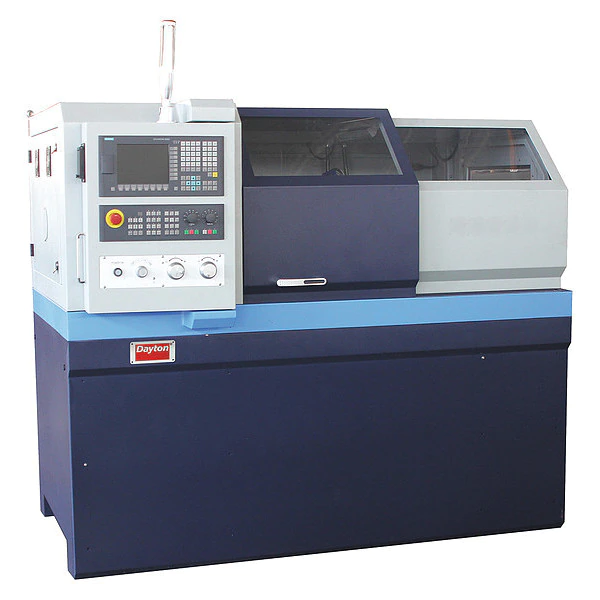

Dayton Lathe, 230 Volts, 5 HP, 60 Hz, 3 Phase
Original price was: $556.00.$96.99Current price is: $96.99.
Lathe, Distance Between Centers 25 in, Voltage 230, Horsepower 5, Min. Spindle Speed 35 RPM, Application Metal Turning, Overall Height 67 1/2 in, Overall Length 77 in, Overall Width 56 1/2 in, Max. Spindle Speed 4,200 RPM, Tailstock Taper MT3
Dayton #467L74 Specifications
- Zoro #: G7132568
- Mfr #: 467L74
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 5
- Phase: Three
- Voltage: 230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 13
- Horsepower: 5 hp
- Overall Length: 77 in
- Spindle Speed (RPM): 35 to 4200
- Coolant Tank Capacity: 10 gal.
- Number of Threads (mm): 0
- Tailstock Taper: MT3
- Overall Height: 67 1/2 in
- Features: Siemens 808D Controller with Relative Encoder
- Overall Width: 56 1/2 in
- Number of Spindle Speeds: Variable
- Spindle Bore (In.): 1-1/2
- Includes: (3) 6 in Jaw Chucks, Coolant System, LED Work Lamp, Lubricating System
- Hz: 60
- Cross Travel (In.): 7-1/4
- Distance Between Centers (In.): 25
- Number of Threads (In.): 0
- Tailstock Travel (In.): 4-3/4
- Bed Width (In.): 8
- Swing Over Cross Slide (In.): 5-1/2″
- Spindle Taper: 1:20
- Min. Spindle Speed: 35 RPM
- Spindle Bore: 1 1/2 in
- Swing Over Bed: 13 in
- Bed Width: 8 in
- Distance Between Centers: 25 in
- Number of Metric Threads: 0
- Number of Inch Threads: 0
- Max. Spindle Speed: 4,200 RPM
- Swing Over Cross Slide: 6 in
- Application: Metal Turning
- Country of Origin (subject to change): China
