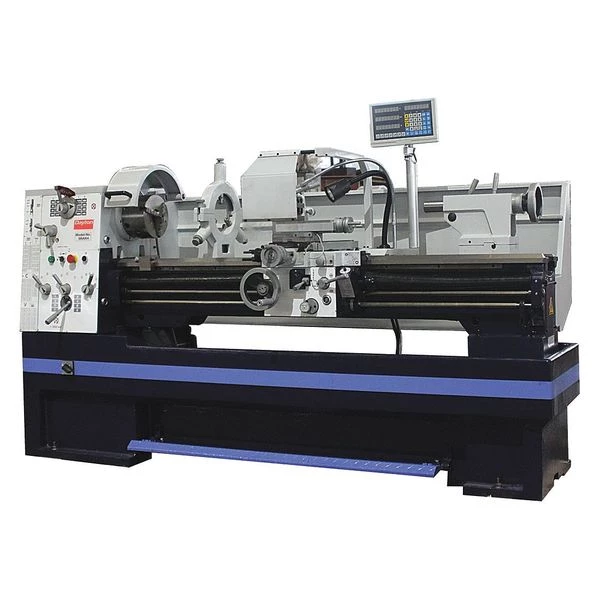

Dayton Lathe, 230 Volts, 6 HP, 60 Hz, 3 Phase
Original price was: $514.00.$91.99Current price is: $91.99.
Lathe, Distance Between Centers 60 in, Voltage 230, Horsepower 6, Min. Spindle Speed 45 RPM, Application Metal Turning, Overall Height 53 in, Overall Length 97 in, Overall Width 36 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT4
Dayton #53UH14 Specifications
- Zoro #: G9188859
- Mfr #: 53UH14
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 6
- Phase: Three
- Voltage: 230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 16
- Horsepower: 6 hp
- Thread Range (mm): 0.2 to 14
- Compound Travel (In.): 4
- Distance Between Centers (In.): 60
- Spindle Taper: MT-6
- Coolant Tank Capacity: 4-55/64 gal.
- Tailstock Travel (In.): 4-3/4
- Longitudinal Feed Rates: 0.006 to 0.067
- Overall Width: 36 in
- Spindle Speed (RPM): 45 to 1800
- Features: Charlock Spindle Seat, Digital Readout, Hardened and Ground Bed Guide Ways, Stand
- Carriage Travel (In.): 55
- Bed Width (In.): 9-7/8
- Thread Range (In.): 2 to 72
- Number of Threads (In.): 45
- Gap Length (In.): 10
- Overall Length: 97 in
- Hz: 60
- Cross Travel (In.): 9
- Number of Threads (mm): 42
- Swing Over Cross Slide (In.): 9-13/16
- Spindle Bore (In.): 2
- Cross Feed Rates: 0.001 to 0.033
- Swing In Gap (In.): 23-7/32
- Tailstock Taper: MT4
- Includes: (2) 4MT Dead Centers, 4 Jaw Chuck, 4 Way Tool Post, Chuck and Tool Post Safety Guard, Digital Readout, DRO, Follower Rest, Inch and Metric Gears for Threading, Splash Guard, Steady Rest, Work Light
- Overall Height: 53 in
- Number of Spindle Speeds: 16
- Spindle Bore: 2 in
- Max. Threads per Inch: 72
- Max. Cross Feed: 0.0330 in
- Distance Between Centers: 60 in
- Swing In Gap: 23 7/32 in
- Min. Spindle Speed: 45 RPM
- Bed Width: 9 7/8 in
- Min. Metric Thread: 0.2 mm
- Max. Metric Thread: 14 mm
- Application: Metal Turning
- Min. Cross Feed: 0.0010 in
- Swing Over Bed: 16 in
- Swing Over Cross Slide: 9 13/16 in
- Min. Threads per Inch: 2
- Gap Length: 10 in
- Number of Inch Threads: 45
- Number of Metric Threads: 42
- Max. Spindle Speed: 1,800 RPM
- Country of Origin (subject to change): China
