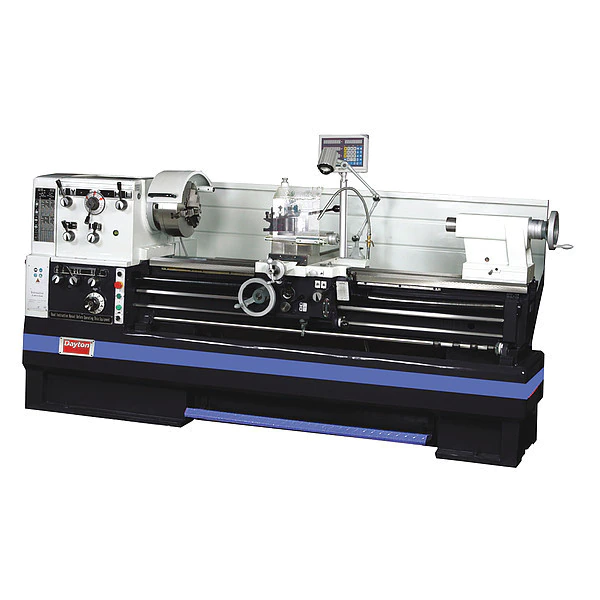

Dayton Lathe, 230 Volts, 7 1/2 HP, 60 Hz, 3 Phase
Original price was: $489.00.$92.99Current price is: $92.99.
Lathe, Distance Between Centers 80 in, Voltage 230, Horsepower 7 1/2, Min. Spindle Speed 30 RPM, Application Metal Turning, Overall Height 63 in, Overall Length 128 in, Overall Width 49 in, Max. Spindle Speed 2,400 RPM, Tailstock Taper MT4
Dayton #467K91 Specifications
- Zoro #: G7121182
- Mfr #: 467K91
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 7-1/2
- Phase: Three
- Voltage: 230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 18
- Horsepower: 7 1/2 hp
- Thread Range (mm): 0.1 to 14
- Number of Threads (In.): 40
- Overall Height: 63 in
- Overall Width: 49 in
- Cross Feed Rates: 0.001 to 0.033
- Includes: (2) 5MT Dead Centers, (4) Jaw Chucks, Chuck and Tool Post Safety Guard, Digital Readout, DRO, Follower Rest, Inch and Metric Gears for Threading, Splash Guard, Stand, Steady Rest, Work Light
- Compound Travel (In.): 1-1/4
- Spindle Speed (RPM): 30 to 2400
- Longitudinal Feed Rates: 0.002 to 0.067
- Distance Between Centers (In.): 80
- Hz: 60
- Spindle Taper: MT-6
- Thread Range (In.): 2 to 112
- Tailstock Taper: MT4
- Tailstock Travel (In.): 5
- Features: Emergency Stop Push Button, Hardened and Ground Bed Guide Ways, Right and Left Rotation On The Bed Slide
- Cross Travel (In.): 28
- Number of Spindle Speeds: 12
- Carriage Travel (In.): 11
- Gap Length (In.): 9-1/2
- Number of Threads (mm): 53
- Spindle Bore (In.): 3-1/8
- Coolant Tank Capacity: 5 gal.
- Bed Width (In.): 11-3/4
- Swing Over Cross Slide (In.): 10-1/2
- Overall Length: 128 in
- Swing In Gap (In.): 18-3/4
- Min. Cross Feed: 0.0010 in
- Number of Inch Threads: 40
- Min. Threads per Inch: 2
- Max. Metric Thread: 14 mm
- Application: Metal Turning
- Min. Metric Thread: 0.10 mm
- Max. Threads per Inch: 112
- Number of Metric Threads: 53
- Swing Over Cross Slide: 10 1/2 in
- Gap Length: 9 1/2 in
- Max. Spindle Speed: 2,400 RPM
- Swing In Gap: 27 in
- Spindle Bore: 3 1/8 in
- Max. Cross Feed: 0.0330 in
- Bed Width: 11 3/4 in
- Min. Spindle Speed: 30 RPM
- Distance Between Centers: 80 in
- Swing Over Bed: 18 in
- Country of Origin (subject to change): China
