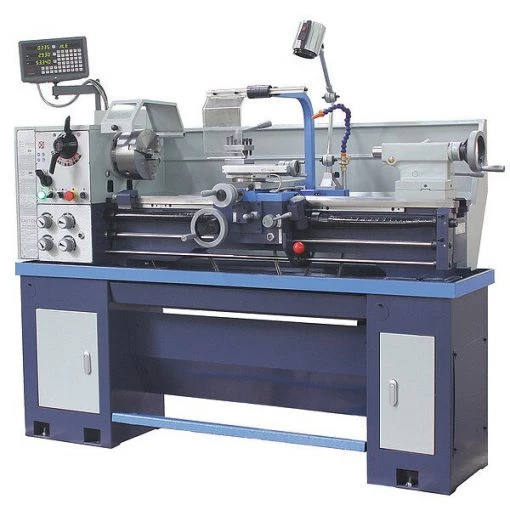

Dayton Lathe, 460 Volts, 2 HP, 60 Hz, 3 Phase
Original price was: $575.00.$95.99Current price is: $95.99.
Lathe, Distance Between Centers 40 in, Voltage 460, Horsepower 2, Min. Spindle Speed 70 RPM, Application Metal Turning, Overall Height 58 in, Overall Length 76 in, Overall Width 30 in, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3
Dayton #484N93 Specifications
- Zoro #: G8526152
- Mfr #: 484N93
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 2
- Phase: Three
- Voltage: 460V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 13
- Horsepower: 2 hp
- Swing Over Cross Slide (In.): 6-1/2
- Longitudinal Feed Rates: 0.003 to 0.023
- Overall Width: 30 in
- Includes: (2) 4MT Dead Centers, 4 Jaw Chuck, 4-Way Tool Post, Chuck, Digital Readout, DRO, Follower Rest, Inch, Metric Gears for Threading, Splash Guard, Steady Rest, Tool Post Safety Guard, Work Light
- Thread Range (In.): 56 to 4
- Bed Width (In.): 7-3/8
- Overall Height: 58 in
- Spindle Taper: MT-6
- Spindle Speed (RPM): 70 to 2000
- Carriage Travel (In.): 7
- Cross Travel (In.): 7
- Hz: 60
- Features: Emergency Stop Push Button, Ground Bed Guide Ways, Ground Toothed Wheels, Hardended, Hardened, Lockable Main Switch, Protective Motor Switch
- Overall Length: 76 in
- Tailstock Taper: MT3
- Swing In Gap (In.): 18-3/4
- Gap Length (In.): 8
- Cross Feed Rates: 0.0005 to 0.015
- Compound Travel (In.): 3-3/4
- Tailstock Travel (In.): 5
- Thread Range (mm): 0.40 to 7
- Number of Threads (mm): 26
- Coolant Tank Capacity: Not Rated
- Distance Between Centers (In.): 40
- Number of Threads (In.): 34
- Number of Spindle Speeds: 8
- Spindle Bore (In.): 2
- Swing In Gap: 18 3/4 in
- Distance Between Centers: 40 in
- Number of Inch Threads: 34
- Min. Spindle Speed: 70 RPM
- Spindle Bore: 2 in
- Max. Metric Thread: 7 mm
- Application: Metal Turning
- Swing Over Cross Slide: 6 1/2 in
- Min. Metric Thread: 0.4 mm
- Gap Length: 8 in
- Bed Width: 7 3/8 in
- Swing Over Bed: 13 in
- Max. Spindle Speed: 2,000 RPM
- Min. Threads per Inch: 4
- Number of Metric Threads: 26
- Max. Threads per Inch: 56
- Max. Cross Feed: 0.0150 in
- Min. Cross Feed: 0.0005 in
- Country of Origin (subject to change): China
