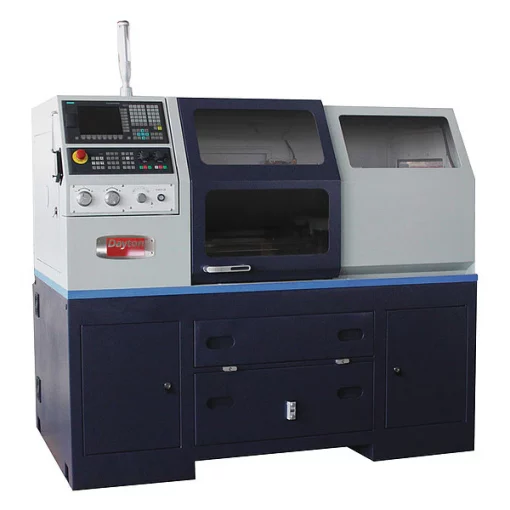

Dayton Lathe, 460V AC Volts, 4 3/4 HP, 60 Hz, 3 Phase
Original price was: $560.00.$93.99Current price is: $93.99.
Lathe, Distance Between Centers 23 5/8 in, Voltage 460V AC, Horsepower 4 3/4, Min. Spindle Speed 30 RPM, Application Metal Turning, Overall Height 73 in, Overall Length 77 in, Overall Width 37 in, Max. Spindle Speed 4,000 RPM, Tailstock Taper MT2
Dayton #499F44 Specifications
- Zoro #: G9091879
- Mfr #: 499F44
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 4-3/4
- Phase: Three
- Voltage: 460V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 11
- Horsepower: 4 3/4 hp
- Coolant Tank Capacity: 6-39/64 gal.
- Hz: 60
- Overall Length: 77 in
- Spindle Bore (In.): 1
- Cross Feed Rates: 118″/Minute
- Spindle Taper: MT-4
- Features: CNC Controlled
- Cross Travel (In.): 7
- Overall Width: 37 in
- Includes: 3 Jaw Chuck, Tailstock, Turret, Work Light
- Number of Threads (In.): 0
- Bed Width (In.): 7
- Number of Threads (mm): 0
- Swing Over Cross Slide (In.): 8-7/8
- Longitudinal Feed Rates: 98-1/2″/Minute
- Tailstock Travel (In.): 3-1/8
- Spindle Speed (RPM): 30 to 4000
- Overall Height: 73 in
- Tailstock Taper: MT2
- Distance Between Centers (In.): 23-5/8
- Number of Spindle Speeds: Variable
- Swing Over Cross Slide: 8 7/8 in
- Swing Over Bed: 11 in
- Number of Metric Threads: 0
- Spindle Bore: 1 in
- Distance Between Centers: 23 5/8 in
- Application: Metal Turning
- Bed Width: 7 in
- Max. Spindle Speed: 4,000 RPM
- Min. Spindle Speed: 30 RPM
- Number of Inch Threads: 0
- Country of Origin (subject to change): China
