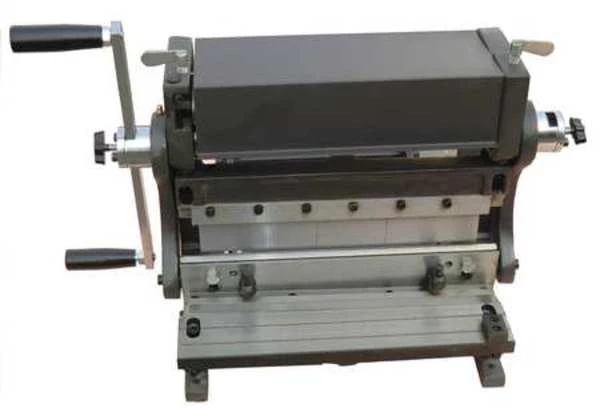

Dayton Metal Forming Machine, 12 in Bending Length, 12 in Cutting Width, Min. 1 1/2 in Rolls
Original price was: $526.99.$94.99Current price is: $94.99.
Metal Forming Machine, Bending Length (In.) 12 in, Cutting Width (In.) 12 in, Rolls Min. 1 1/2 in, Capacity of Mild Steel (Gauge) 20, Finger Width (In.) 1-4, Dual Edge Adjustable And Reversible, Made Of Tool Steel Blade, Cast Iron, Die Carbon Steel, Steel Male, Sizes 1 in , 2 in , 2 in , 3 in and 4 in , Continuous Female V Shaped Forming
Dayton #12G596 Specifications
- Zoro #: G3905781
- Mfr #: 12G596
- Promotion Restriction: Not eligible for promotion
- Item: Combination Machine
- Bending Length (In.): 12 in
- Cutting Width (In.): 12 in
- Rolls: Min. 1 1/2 in
- Capacity of Mild Steel (Gauge): 20
- Die: Carbon Steel, Steel Male, Sizes 1 in , 2 in , 2 in , 3 in and 4 in , Continuous Female V Shaped Forming
- Construction: Cast iron
- Finger Width (In.): 1-4
- Blade: Dual Edge Adjustable And Reversible, Made Of Tool Steel
- Features: High Carbon, Dual-edge Reversible Shear Blade Can Be Sharpened. Blade Is Adjustable After Wear Or Resharpening. Hold-down Is Positioned To Allow Visual Location Of The Shear Line. Bends 20 ga Mild Steel With High Carbon, Carbon Steel Male Dies, Sizes 1 in, 2 in, 2 in, 3 in, And 4 in Continuous Female “v”-shaped Forming Die. Three Rollers, Each 1 1/2 in X 12 in, With Wire Forming Grooves. Rolls A Minimum 1 1/2 in Diameter To An Unlimited Maximum. Height Stop-block. Two Extension Bars With 90 Degrees Angle. Iron Adjustable Length Stop.
- Brake Type: Box and Pan
- Bending Length: 12 in
- Roller Capacity Aluminum: 15 ga
- Roller Capacity Stainless Steel: 24 ga
- Brake Capacity Stainless Steel: 24 ga
- Shear Capacity Aluminum: 15 ga
- Finger Width: 1 in, 2 in, 3 in, 4 in
- Shear Capacity Mild Steel: 19 ga
- Number of Rollers: 3
- Included Tool Types: Shear, Roller, Bender
- Brake Capacity Mild Steel: 19 ga
- Roller Capacity Mild Steel: 19 ga
- Shear Capacity Stainless Steel: 24 ga
- Minimum Roller Diameter: 1.54 in
- Brake Capacity Aluminum: 16 ga
- Power Source: Manual
- Actuation: Hand Lever
- Maximum Bend Angle: 90 Degrees
- Country of Origin (subject to change): China
