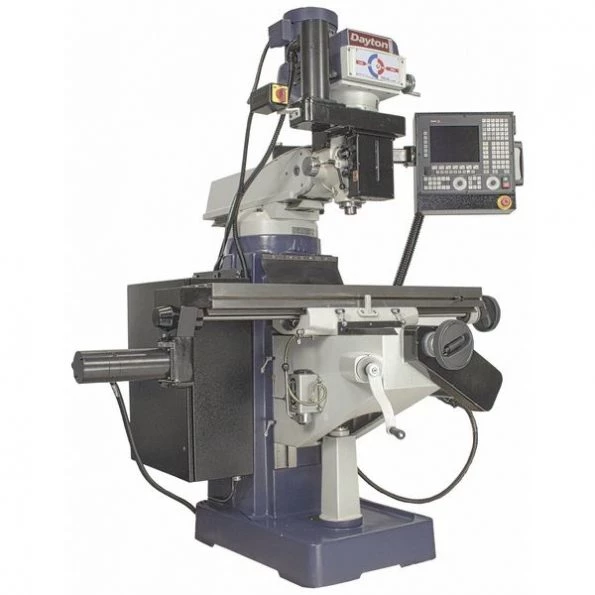

Dayton Mill/Drill Machine, 120/240V, 1720rpm, 60Hz
Original price was: $427.00.$94.99Current price is: $94.99.
Mill Drill Machine, Phase 3, Swing 30 in
Dayton #444F35 Specifications
- Zoro #: G3784720
- Mfr #: 444F35
- Swing: 30 in
- Voltage: 230/460V
- RPM: 1720
- Item: Mill Drill Machine
- Drilling Capacity Steel: 3/4 in
- Spindle Speed: 70 to 3800 rpm
- Face Milling Capacity: 3 in
- Motor HP: 3
- Phase: 3
- Longitudinal Travel: 27 1/2 in
- Cross Travel: 10 in
- Chuck Size: Not Included
- Amps: 8.0/4.0
- End Milling Capacity: 3 in
- Table Work Surface: 9 in x 49 in
- Motor Type: Brushless DC
- Features: Variable Speed Drive, Heavy Duty Spline Motor Drive System, Vent Air Cooling System for Variable Speed Drive, Heavy Duty Spindle Brake, Forward, Reverse Drum Switch, Dual Taper Roller Spindle Bearing, Draw Bar, Flame Hardened to Rc 50-54, Ground and Hand Scraped Ways One Shot Lubrication System
- Corded/Cordless: Corded
- Spindle to Table: 17-1/4″
- Spindle Travel: 5 in
- Includes: Fagor CNC 8055FL Conversion Set-Up, 3-Axis DRO, X and Y Axis Power Feed, Heavy Duty Spindle Brake, Forward/Reverse Drum Switch, Heavy Duty Extended Travel Ram
- Hz: 60
- Corded/Banded: Corded
- Spindle Taper: R8
- T-Slots: 5/8″
- Graduations: 0.0010 in
- Quill Dia.: 3 3/8 in
- Head: Belt Drive
- Operation: Power
- Spindle: R8
- Frequency: 60Hz
- Power Source: Corded
- Speed: 1720 rpm
- T-Slot Width: 5/8 in
- Motor Horsepower: 3
- Country of Origin (subject to change): Taiwan, Province of China
Related Products
Dust Collector, Two Stage Portable, Max. Flow (CFM) 1,100 cfm, Operating Velocity Range (FPM) 6,900 fpm, Static Pressure Range (In.) 1.34 to 7.3, 1 1/2 hp HP, 230/460V AC Voltage, 60 Hz Hz, Three, 4.2/2.1 A Amps AC, Hose Dia. (In.) 5 in, 82 dBA dBA, Drum Dia. (In.) 22 in to 24 in, 5 micron Filter Bag, Includes 5 ft Wire-Reinforced PVC Inlet Hose and Clamps, 5 micron Dust Collector Bag, 8 ft Power Cord
Sheet Metal Brake, Brake Type Box and Pan, Actuation Hand Lever, Sheet Capacity Aluminum 12 ga, Sheet Metal Capacity Mild Steel 16 ga, Sheet Metal Capacity Stainless Steel 22 ga, Maximum Bend Angle 135 Degrees , Angle Gauge No, Finger Style Top Edge, Finger Width 2 in, 3 in, 4 in
Hose Extension Kit For 2-Stage Collectors
Dust Collector, Single Stage, Max. Flow (CFM) 1,490, Min. Air Flow (CFM) 1,490, Operating Velocity Range (FPM) 14,000, Static Pressure Range (In.) 11.50, 2 hp HP, 120/240 Voltage, 60 Hz, 1, 12.6 Amps AC, Chip Capacity (Microns) 5, Drum Capacity (Gal.) 40, Height (In.) 33 1/2 in, Width (In.) 27 1/2 in, Depth (In.) 36 in, Overall Height (In.) 76 3/4 in, Overall Width (In.) 27 1/2 in, Overall Depth (In.) 36 1/2 in, Max. Hose Length (Ft.) 6, Hose Dia. (In.) 4 in, 80 dBA, Drum Dia. (In.) 19-3/4

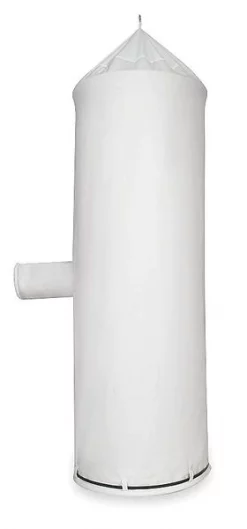

Filter Bag, Oversized, Overall Height (In.) 72, Overall Dia. (In.) 24, For Use With 15.5 cu. ft., 1-1/2 HP and Larger Two-Stage Collectors , Includes Micron Filter Bag and Belt Drum
