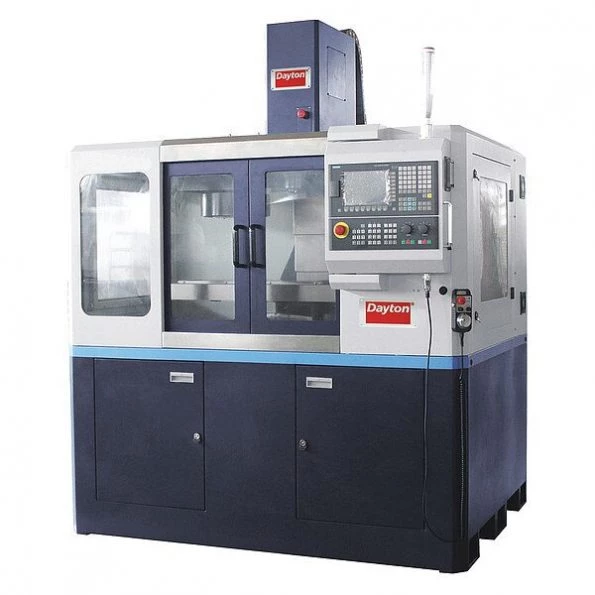

Dayton Mill/Drill Machine, 60 Hz, 26.0A
Original price was: $555.00.$97.99Current price is: $97.99.
Mill Drill Machine, Phase 3, Swing 11 in
Dayton #467L68 Specifications
- Zoro #: G7124323
- Mfr #: 467L68
- Swing: 11 in
- Voltage: 230V
- RPM: 50 to 10,000
- Item: Mill Drill Machine
- Drilling Capacity Steel: 1 in
- Spindle Speed: 50 to 10,000 rpm
- Face Milling Capacity: 2 1/2 in
- Motor HP: 1.5
- Phase: 3
- Longitudinal Travel: 12 1/4 in
- Cross Travel: 7 7/8 in
- Chuck Size: Not Included
- Amps: 26.0
- End Milling Capacity: 1 1/4 in
- Spindle to Table: 15-1/3″
- Includes: Cover
- Operation: Power
- Table Surface Height: 37 in
- Table Work Surface: 8 in x 27 in
- Spindle Travel: 11 3/4 in
- Corded/Cordless: Corded
- Graduations: 0.0010 in
- Features: Siemens 808D Control System, Door Equipped with A Safety Switch, Central Lubrication, Cooling System, Double Line 24V Electric Hand Wheel
- Spindle: BT30
- Head: Belt Drive
- Spindle Taper: BT30
- Motor Type: TEFC
- T-Slots: 5/8″
- Hz: 60
- Frequency: 60Hz
- Power Source: Corded
- Speed: 50 to 10,000 rpm
- T-Slot Width: 5/8 in
- Motor Horsepower: 1 1/2
- Country of Origin (subject to change): China
