Dayton OD Grinder, 50 gal. Coolant Tank Capacity
Original price was: $551.00.$98.99Current price is: $98.99.

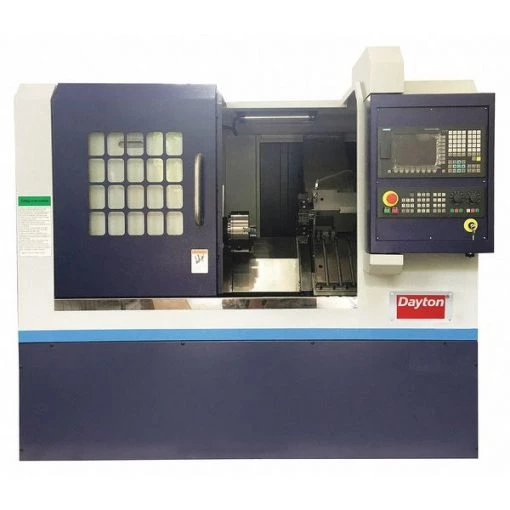

Lathe, Distance Between Centers 100 in, Voltage 220, Overall Height 71 in, Overall Width 65 in, Max. Spindle Speed 3,000 RPM
Dayton #490X04 Specifications
- Zoro #: G7670877
- Mfr #: 490X04
- Item: Lathe
- Phase: Three
- Voltage: 220V AC
- Swing: 14″
- Machine Depth: 82″
- Machine Width: 65″
- Spindle RPM: 2000
- Includes: 3 Jaw 8 in Chuck, 3-Way Digital Readout, Coolant System, Sliding Enclosure Door, Work Light
- Distance Between Centers: 100 in
- Features: 8-Station Automatic Turret, CNC Control, One Shot Oil Lubrication Pump, Slant Bed Design Produces Straight Movement In Z-Axis, Slant Bed with Protected Cover Increases Cutting Strength and Saves Manufacturing Space, Ultra High Precision Linear Rails
- Infeed Range: 0 to 13-3/4″
- Hz: 60
- Machine Weight: 3300 lb.
- Machine Height: 71″
- Coolant Tank Capacity: 50 gal.
- Overall Width: 65 in
- Overall Height: 71 in
- Max. Spindle Speed: 3,000 RPM
- Frequency: 60 Hz
- Country of Origin (subject to change): China
