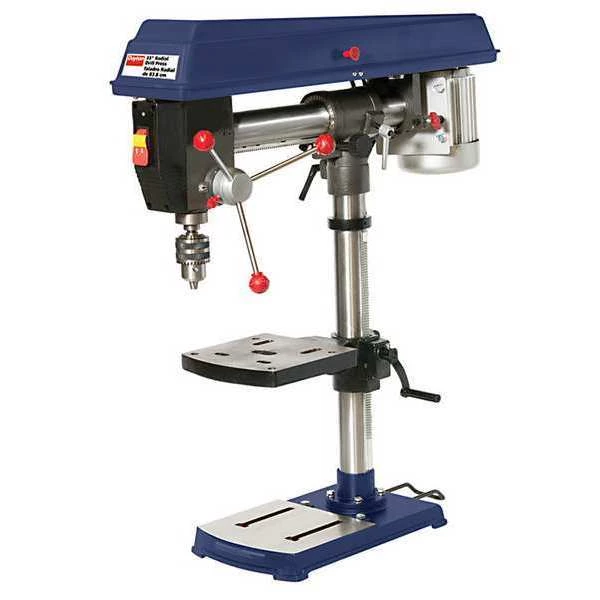

Dayton Radial Bench Drill Press, Belt Drive, 1/2 hp, 120 V, 33 in Swing, 5 Speed
Original price was: $544.00.$93.99Current price is: $93.99.
General Purpose Drill Presses, Radial Bench Drill Press, Drive Type Belt, Swing 33 in, Spindle Taper 2MT, Motor HP 1/2 hp, Capacity Steel 3/8 in, Capacity Cast Iron 5/8 in, Drilling Capacity Wood Not Specified, Includes Arbor, Chuck and Key, Power Down Feed Included No, Voltage 120, Amps AC 7.0, Number of Speeds 5, Chuck Size 5/8 in, Spindle Speed 550 to 3300 rpm, Spindle Travel 3 5/32 in, Base Size 10 in x 16-45/64 in, Table Work Surface 9 in x 9 in, Hz 60, Phase 1, Number of T-Slots 0
Dayton #40PM15 Specifications
- Zoro #: G2096459
- Mfr #: 40PM15
- Drill Press Product Grouping: General Purpose Drill Presses
- Item: Radial Bench Drill Press
- Drive Type: Belt
- Swing: 33 in
- Voltage: 120
- Motor HP: 1/2 hp
- Chuck Size: 5/8 in
- Number of Speeds: 5
- Capacity Steel: 3/8 in
- Spindle Speed: 550 to 3300 rpm
- Drilling Capacity Wood: Not Specified
- Hz: 60
- Overall Depth: 33 in
- Power Down Feed Included: No
- Corded/Banded: Corded
- Quill Dia.: 1 55/64 in
- Table Work Surface: 9 in x 9 in
- Phase: 1
- Table Slot Size: 1/2 in
- Spindle to Table: 13 1/8 in
- Amps AC: 7.0
- Spindle Travel: 3 5/32 in
- Overall Width: 14 in
- Max. Spindle To Base: 22 in
- Base Size: 10 in x 16-45/64 in
- Spindle Taper: 2MT
- Number of T-Slots: 0
- Corded/Cordless: Corded
- Column Dia.: 2 23/64 in
- Tilting Angle: 45 Degrees
- Capacity Cast Iron: 5/8 in
- Includes: Arbor, Chuck and Key
- Overall Height: 32 in
- Table Shape: Square
- Table Length: 9 in
- Coolant System: No
- Maximum Spindle-to-Table Height: 13 1/8 in
- Quill Diameter: 1 55/64 in
- Motor Voltage: 115V AC ; Single-Phase
- Number of Spindle Speeds: 5
- Downfeed Type: Manual
- Current: 5.5 A
- Speed Adjustment: Step Pulley
- Spindle-to-Column Distance: 16 1/2 in
- Chuck Style: Keyed
- Table Tilt: 45 Degrees Left and Right
- Drill Press Type: Benchtop
- Guard Included: No
- Horsepower: 1/2 hp
- Table Slot: Yes
- Base Length: 10 in
- Nominal Voltage: 115V AC
- Column Diameter: 2 3/8 in
- Primary Material Application: Metal, Wood
- Drilling Capacity in Cast Iron: 5/8 in
- Drill Press Application: Countersinking, Drilling, Reaming
- Maximum Spindle Speed: 3,300 RPM
- Drilling Capacity in Steel: 3/8 in
- Minimum Spindle Speed: 550 RPM
- Maximum Overall Height: 32 in
- Speed Control: Fixed
- Radial Arm Length: 33 in
- Maximum Spindle-to-Base Height: 22 in
- Radial Arm: Yes
- Power Source: Corded
- Spindle Speed Range: 550 RPM – 3,300 RPM
- Table Width: 9 in
- Table Slot Width: 1/2 in
- Speed Range: 550 to 3,300 RPM
- Overall Length: 33 in
- Base Width: 16 3/4 in
- Country of Origin (subject to change): China
