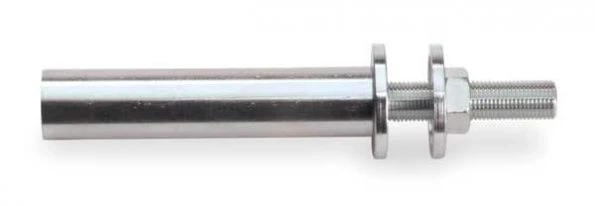

Dayton Shaft Arbor, 1/2-20rh
Original price was: $17.45.$12.91Current price is: $12.91.
Shaft Arbor, Extra Long, 1/2-20RH Thread, Counter Clockwise Rotation, Max. Wheel Width (In.) 1 5/8 in, Overall Length (In.) 6 1/4 in, Thread Length (In.) 2 1/4 in, Washer O.D. (In.) 1 1/2 in, Fits Shaft Dia. (In.) 5/8 in, Socket, Locks Arbors Securely to Shaft Setscrew Type, Mounting Various Buffing and Finishing Wheels on Electric Motors, For Use With Dayton Keyless Chucks to Drive Various Shank-mounted Power Tool Accessories, Includes Hex Nut, Machined Washers
Dayton #3ZN16 Specifications
- Zoro #: G0934753
- Mfr #: 3ZN16
- Type: Extra Long
- Max. Wheel Width (In.): 1 5/8 in
- Overall Length (In.): 6 1/4 in
- Fits Shaft Dia. (In.): 5/8 in
- For Use With: Dayton Keyless Chucks to Drive Various Shank-Mounted Power Tool Accessories
- Thread Length (In.): 2 1/4 in
- Setscrew Type: Socket, Locks Arbors Securely to Shaft
- Application: Mounting Various Buffing and Finishing Wheels on Electric Motors
- Washer O.D. (In.): 1 1/2 in
- Thread: 1/2-20RH
- Rotation: Counter Clockwise
- Item: Shaft Arbor
- Includes: Hex Nut, Machined Washers
- Fits Shaft Diameter: 5/8 in
- Thread Length: 2 1/4 in
- Thread Size: 1/2″-20 RH
- Overall Length: 6 1/4 in
- Maximum Wheel Width: 1 5/8 in
- Shaft Rotation: Counter Clockwise
- Washer Outside Diameter: 1 1/2 in
- Country of Origin (subject to change): China
