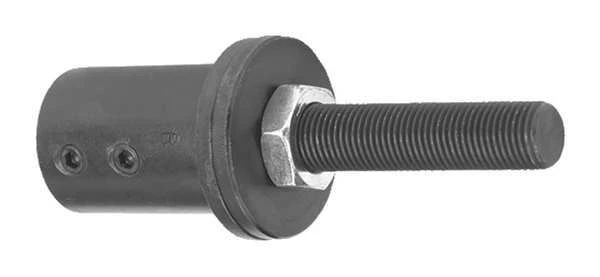

Dayton Shaft Arbor, 1/2-20rh
Original price was: $11.00.$8.47Current price is: $8.47.
Shaft Arbor, Fits Shaft Diameter 3/8 in, For Use With Dayton Keyless Chucks to Drive Various Shank-Mounted Power Tool Accessories, Includes Hex Nut, Machined Washers, Thread Length 2 5/8 in, Thread Size 1/2 In.-20 RH, Washer Outside Diameter 1 1/2 in, Maximum Wheel Width 2 in, Setscrew Type Socket, Shaft Rotation Counter Clockwise, Overall Length 4 1/16 in, Type Extra Long, Application Mounting Various Buffing and Finishing Wheels on Electric Motors
Dayton #3ZN03 Specifications
- Zoro #: G3320922
- Mfr #: 3ZN03
- Type: Extra Long
- Max. Wheel Width (In.): 1 13/16 in
- Overall Length (In.): 4 1/16 in
- Fits Shaft Dia. (In.): 3/8 in
- For Use With: Dayton Keyless Chucks to Drive Various Shank-Mounted Power Tool Accessories
- Includes: Hex Nut, Machined Washers
- Thread: 1/2-20RH
- Thread Length (In.): 2 1/2 in
- Rotation: Counter Clockwise
- Setscrew Type: Socket, Locks Arbors Securely to Shaft
- Item: Shaft Arbor
- Washer O.D. (In.): 1 1/2 in
- Application: Mounting Various Buffing and Finishing Wheels on Electric Motors
- Shop By: Closeouts
- Fits Shaft Diameter: 3/8 in
- Shaft Rotation: Counter Clockwise
- Thread Length: 2 5/8 in
- Maximum Wheel Width: 2 in
- Washer Outside Diameter: 1 1/2 in
- Thread Size: 1/2″-20 RH
- Overall Length: 4 1/16 in
- Country of Origin (subject to change): China
