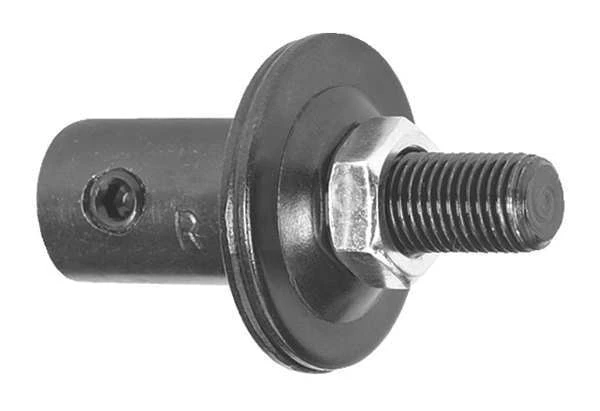

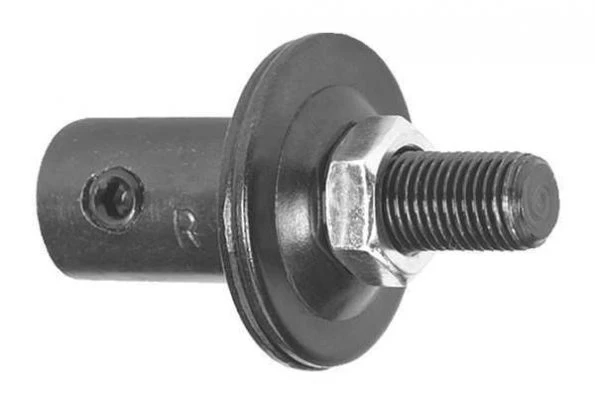

Dayton Shaft Arbor, 3/8-24lh
Original price was: $7.70.$5.54Current price is: $5.54.
Shaft Arbor, Small, 3/8-24LH Thread, Clockwise Rotation, Max. Wheel Width (In.) 1/2 in, Overall Length (In.) 2 in, Thread Length (In.) 1 1/8 in, Washer O.D. (In.) 1 1/4 in, Fits Shaft Dia. (In.) 5/16 in, Socket, Locks Arbors Securely to Shaft Setscrew Type, Mounting Various Buffing and Finishing Wheels on Electric Motors, Includes Flanged Washers, Hex Nut
Dayton #3ZN10 Specifications
- Zoro #: G1351594
- Mfr #: 3ZN10
- Type: Small
- Max. Wheel Width (In.): 1/2 in
- Overall Length (In.): 2 in
- Fits Shaft Dia. (In.): 5/16 in
- For Use With: Smaller Fractional Horsepower Motors
- Setscrew Type: Socket, Locks Arbors Securely to Shaft
- Thread Length (In.): 1 1/8 in
- Rotation: Clockwise
- Washer O.D. (In.): 1 1/4 in
- Application: Mounting Various Buffing and Finishing Wheels on Electric Motors
- Item: Shaft Arbor
- Thread: 3/8-24LH
- Includes: Flanged Washers, Hex Nut
- Shop By: Closeouts
- Thread Size: 3/8″-24 LH
- Maximum Wheel Width: 1/2 in
- Thread Length: 1 1/8 in
- Washer Outside Diameter: 1 1/4 in
- Fits Shaft Diameter: 5/16 in
- Overall Length: 2 in
- Shaft Rotation: Clockwise
- Country of Origin (subject to change): China
