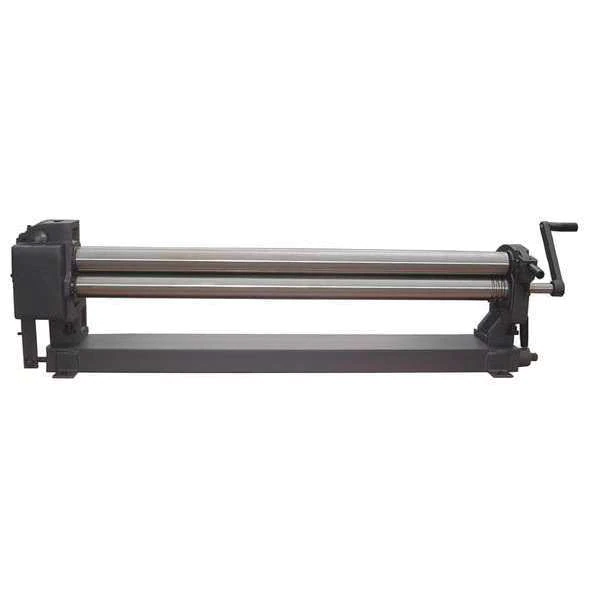

Dayton Slip Roll, 24 In, 20 Ga.
Original price was: $438.00.$97.99Current price is: $97.99.
Slip Roll, Max. Forming Width (In.) 24 in, Max. Capacity 20 ga, Dia. of Rolls (In.) 1 1/2 in, Min. Radius (In.) 3/4 in, Ground And Polished Steel Rolls With Wire Grooves, Large Roll-adjusting Screws Accommodate Wide Range Of Sheet Metal Gauges., Form Cylinders, Reverse Curves And Radius Bends Of Sheet Metal, Designed For Bench Or Table Mounting With Front-mounted Handle For Easy Placement And Release Of Workpiece.
Dayton #13W881 Specifications
- Zoro #: G3982851
- Mfr #: 13W881
- Item: Slip Roll
- Application: Form Cylinders, Reverse Curves And Radius Bends Of Sheet Metal, Designed For Bench Or Table Mounting With Front-mounted Handle For Easy Placement And Release Of Workpiece.
- Characteristics: Ground And Polished Steel Rolls With Wire Grooves, Large Roll-adjusting Screws Accommodate Wide Range Of Sheet Metal Gauges.
- Min. Radius (In.): 3/4 in
- Max. Capacity: 20 ga
- Max. Forming Width (In.): 24 in
- Dia. of Rolls (In.): 1 1/2 in
- Material: Steel
- Cone Rolling: Yes
- Sheet Metal Capacity Stainless Steel: 24 ga
- Top Roller Diameter: 1 1/2 in
- Power Source: Manual
- Maximum Bending Length: 24 in
- Number of Rollers: 3
- Minimum Bend Radius: 3/4 in
- Sheet Metal Capacity Mild Steel: 19 ga
- Sheet Capacity Aluminum: 15 ga
- Actuation: Hand Crank
- Bottom Roller Diameter: 1 1/2 in
- Country of Origin (subject to change): China
