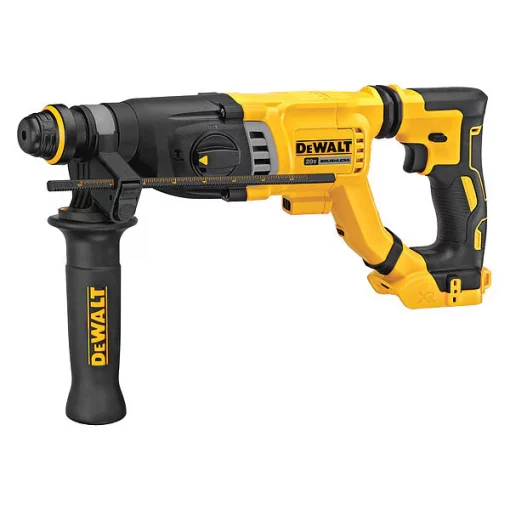

Dewalt 20V MAX* 1-1/8 in. Brushless Cordless SDS PLUS D-Handle Rotary Hammer (Tool Only)
Original price was: $353.67.$93.99Current price is: $93.99.

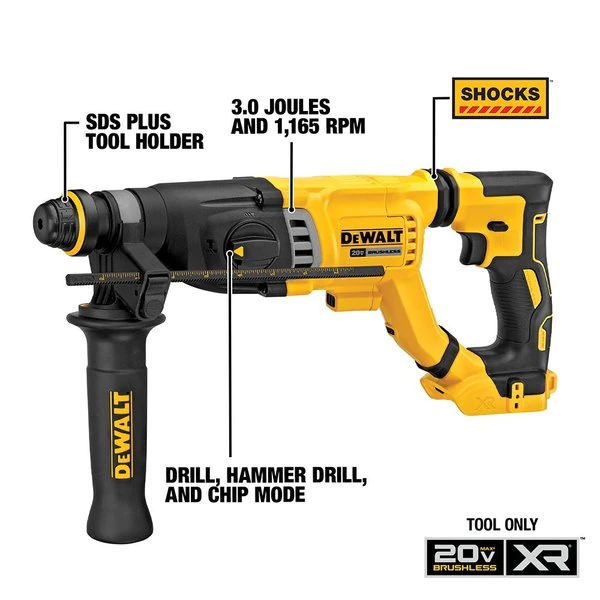

Cordless Rotary Hammers, Cordless Rotary Hammer, Bare Tool, Voltage 20.0 V, Chuck Type SDS Plus, Cordless Tool Battery Type Li-Ion, Battery Capacity 6.0 Ah, 0 to 4300 Blows per Minute, 0 to 1165 No Load RPM, Brushless Motor Yes, Series 20V MAX, Stop Rotation Yes, 1 1/8 in Capacity in Concrete, 1/2 in Solid Bit Capacity, 2 1/2 in Core Bit Capacity, Impact Energy 2.2 ft-lb, Battery Included No, Battery Pack Replacement 52NA71, Handle Type D-Handle. The 20V MAX* Brushless 1-1/8 in. Rotary Hammer is a high-performance drill powered by a brushless motor and a durable German-engineered mechanism, delivering 3.0 Joules of impact energy. The lightweight design makes this tool ideal for forming, #3 to #5 post installed rebar dowelling, tilt wall support, rod hanging, beam & column anchorage, and steel stanchion mounting. It is part of the PERFORM and PROTECTTM product line, integrated with the SHOCKS ACTIVE VIBRATION CONTROL® System and becomes OSHA Table 1 Compliant when used with the DWH205DH On Board Extractor.
Dewalt #DCH263B Specifications
- Zoro #: G9660833
- Mfr #: DCH263B
- Promotion Restriction: Not eligible for promotion
- Item: Cordless Rotary Hammer
- Chuck Type: SDS Plus
- Voltage: 20.0 V
- No Load RPM: 0 to 1165
- Blows per Minute: 0 to 4300
- Cordless Tool Battery Type: Li-Ion
- Battery Capacity: 6.0 Ah
- Includes: Side Handle, Depth Rod
- Core Bit Capacity: 2 1/2 in
- Solid Bit Capacity: 1/2 in
- Corded/Cordless: Cordless
- Brushless Motor: Yes
- Series: 20V MAX
- Tool Length: 15 57/64 in
- Handle Type: D-Handle
- Overall Width: 12 5/8 in
- Included Charger: No
- Overall Height: 7 3/8 in
- Features: Active Vibration Control, Factory Set Clutch
- Tool Weight: 5.9 lb
- Power Source: Cordless
- Charger Replacement: 49EM80
- Standards: UL Listed
- Motor Type: Brushless
- Impact Energy: 2.2 ft-lb
- Capacity in Concrete: 1 1/8 in
- Switch Type: Trigger
- Solid Bit Optimal Drilling Range in Concrete: 1/4 in to 3/4 in
- Vibration Level: 9.1 m/sq sec
- Lock-On Trigger: Yes
- Maximum Speed: 1,165 RPM
- Modes of Operation: Hammer Only
- Cordless Tool Kit Contents: (1) Bare Tool
- Maximum Blows per Minute: 4,300 bpm
- Reversible: Yes
- Vibration Control: Yes
- Chuck Style: SDS-Plus
- Minimum Blows per Minute: 0 bpm
- Drilling Capacity in Concrete: 3/4 in
- Core Bit Capacity in Concrete: 1/2 in
- Number of Batteries Included: 0
- Charger Included: No
- Anti-Kickback Clutch: Yes
- Country of Origin (subject to change): China
