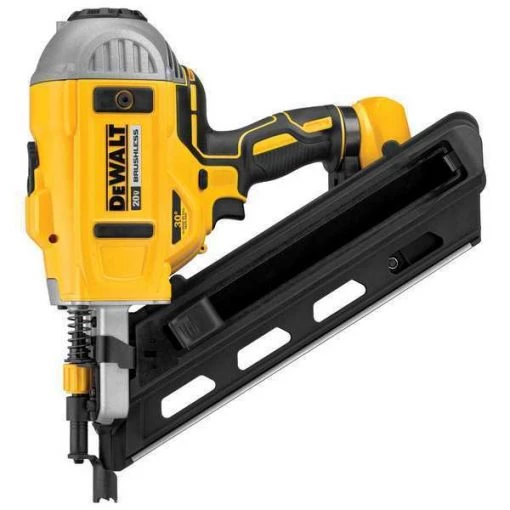

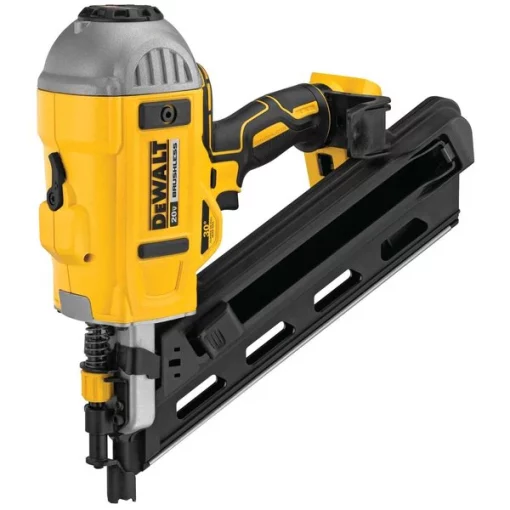

Dewalt 20V MAX* Cordless 30 degree Paper Collated Framing Nailer
Original price was: $437.11.$97.99Current price is: $97.99.
Nail Gun, Cordless Tool Kit Contents (1) Bare Tool, Cordless, 20V DC, DEWALT(R), Series 20V MAX XR, Brushless Motor Yes, Tip Nonmarring, Depth Control Yes, Firing Mode Combination, Collation Style Strip, Collation Type Paper, Collation Angle 30 Degrees , For Nail Head Style Various, For Nail Length Range 2 in to 3 1/2 in, For Nail Penny Size 6d, 7d, 8d, 9d, 11d, 12d, 16d, For Nail Shank Diameter 0.113 in to 0.131 in, Nail Capacity 55, Built-In Light No, Battery Capacity 4.0 Ah. The 20V MAX* Cordless 30° Paper Collated Framing Nailer drives nails from 2 in. to 3-1/2 in. With long runtime and powerful versatility, this nailer is built to handle tough jobsite duty. This tool features our upgraded engine design for increased power and drive quality compared to previous DEWALT cordless nailers. Its compact shape, well-balanced design, and easy-to-operate features make it an efficient, highly productive tool in your team's hands.
Dewalt #DCN692B Specifications
- Zoro #: G7636036
- Mfr #: DCN692B
- Promotion Restriction: Not eligible for promotion
- Item: Nail Gun
- Battery Included / Bare Tool: Bare Tool
- Voltage: 20V DC
- Cordless Tool Battery Type: Li-Ion
- Series: 20V MAX XR
- Corded/Cordless: Cordless
- Handle Type: Pistol Grip
- Magazine: Angled
- Fastener Range: 2 in to 3-1/2 in
- Depth Control: Yes
- Triggering Mode: Sequential or Bump
- Magazine Loading: Lock and Load
- Tool Weight: 8 lb
- Battery Capacity: 4.0 Ah
- Battery Included: No
- Light: No
- Requires: Rechargeable Battery to Operate
- Corded/Banded: Cordless
- Length: 13 1/4 in
- Tip: No Mar
- Magazine Capacity: 55
- Head Style: Various
- Width: 4 45/64 in
- Shank Dia.: 0.113 in to 0.131 in
- Collation Angle: 30 Degrees
- Height: 13 in
- Battery Pack Replacement: 21RV47
- Includes: No-Mar Tip
- Collation Type: Paper
- Firing Mode: Combination
- Housing Material: Plastic
- Features: Dual Speed Motor, Tool Free Depth Adjustment, Adjustable Rafter Hook
- Green Environmental Attribute: Product is Rechargeable
- For Nail Length Range: 2 in to 3 1/2 in
- For Nail Penny Size: 6d, 7d, 8d, 9d, 11d, 12d, 16d
- Battery Series: 20V MAX
- Built-In Light: No
- Cordless Tool Kit Contents: (1) Bare Tool
- Number of Fuel Cells Included: 0
- Number of Batteries Included: 0
- Wireless Tool Tracking: No
- Nail Capacity: 55
- Standards: ANSI
- For Nail Head Style: Various
- Brushless Motor: Yes
- Case Included: No
- Charger Included: No
- For Nail Shank Diameter: 0.113 in to 0.131 in
- Collation Style: Strip
- Power Source: Cordless
- Nail Gun Type: Framing
- Product Type: Nail Gun
- Country of Origin (subject to change): Mexico
