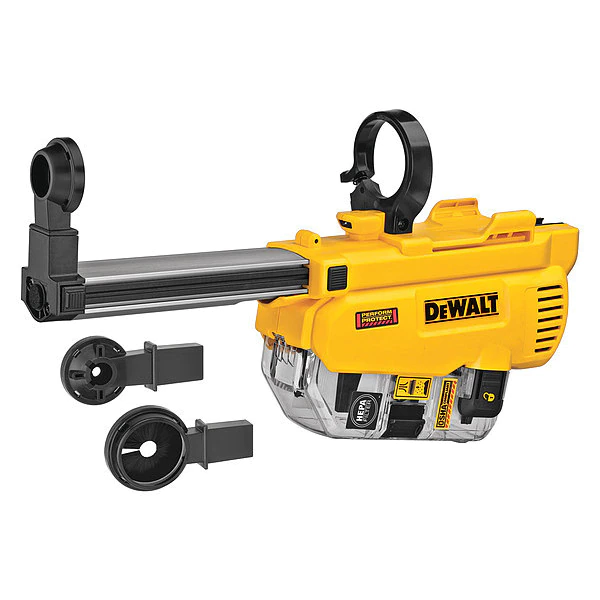

Dewalt Dust Extractor for DCH263 1-1/8 in. SDS Plus D-Handle Rotary Hammer
Original price was: $183.65.$96.99Current price is: $96.99.
Dust Extractor, For Use With DCH263, Includes (3) Dust Nozzle Heads, Dust Box Assembly, Shoulder, Small Diameter Bits, Stop Bits. The DWH205DH is an OSHA Table 1 Compliant dust extractor for the DCH263 20V MAX* XR® Brushless 1-1/8 in. D-Handle SDS Plus Rotary Hammer. This dust extraction system features a powerful built in motor for increased suction and high-performance drilling. The 2-second power-off delay ensures that dust extraction continues after drill is switched off. The DWH205DH features three nozzle heads for maximum dust collection during the application. The included nozzles are tuned for up to 1 in. diameter bits, all stop bits up to 1.5 in. shoulder and small diameter bits up to 0.5 in. This dust extractor allows for bit lengths up to 10 in. in overall length for drilling applications. This allows users to install a wide range of anchors including pinch nails, rod hanging systems like dropins, large diameter sleeve, stud/wedge, and screw anchors. This unit includes an OSHA 1926.1153-compliant Dust Box Assembly. Equipped with a filter cleaning mechanism and a HEPA filter, it removes 99.97% of airborne particles 0.3 microns or greater.
Dewalt #DWH205DH Specifications
- Zoro #: G9660763
- Mfr #: DWH205DH
- Promotion Restriction: Not eligible for promotion
- Item: On-Tool Dust Extractor
- Includes: (3) Dust Nozzle Heads, Dust Box Assembly, Shoulder, Small Diameter Bits, Stop Bits
- Overall Length: 17 3/4 in
- For Use With: DCH263
- Number of Pieces: 7
- Filtration Type: HEPA
- Kit Contents: (3) Dust Nozzle Heads for 1 in Diameter Bits
- Product Type: On-Tool Dust Extractor
- Overall Width: 3 5/8 in
- Compatible Tool Type: Rotary Hammers
- Compatible with Grainger Part Number: 499M03
- Battery Series: 20V
- Compatible with Manufacturer Part Number: DCH263
- Compatible Chuck Style: SDS-Plus
- Extractor Mounting Location: On-Tool
- Standards: OSHA
- Wet or Dry Use: Dry
- Maximum Application Diameter: 1 in
- OSHA Table 1 Compliant: OSHA Table 1 Compliant
- Dust Compartment Type: Self-Contained
- Solid Bit Optimal Drilling Range in Concrete: 1/2 in to 1 1/2 in
- Country of Origin (subject to change): China
