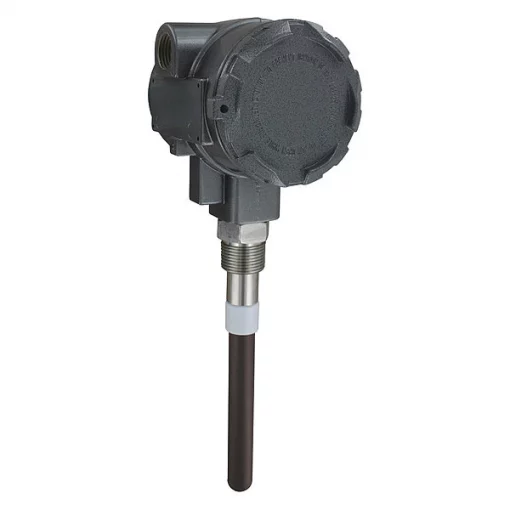

Dwyer Particulate Transmitter, Overall 5.30" W
Original price was: $527.00.$94.99Current price is: $94.99.
Particulate Transmitter
Dwyer #PMT2-15-B-U2 Specifications
- Zoro #: G3980429
- Mfr #: PMT2-15-B-U2
- Power Required – Transmitters: 12 to 28V DC
- Shape – Transmitter: Irregular
- Display – Transmitter: Analog
- Process Connection Size – Transmitter: 1 1/2 in
- Wetted Materials – Transmitters: 316 Stainless Steel, PTFE, Silicone
- Electrical Connections – Transmitter: Terminal Board
- Safety Rating – Transmitter: Class I, Groups C, D; Class II, Groups E, F, G; Class III
- Accuracy – Transmitter: +/-5.00% Full Scale
- Connection Location – Transmitter: Top
- Wiring Entry – Transmitter: 1/2 in FNPT
- Output – Transmitter: 4 to 20mA DC
- Process Connection Type – Transmitter: Triclamp
- Overall Width – Transmitter: 5.3 in
- Operating Temp. – Transmitter: -40 Degrees to 248 Degrees F
- Item: Particulate Transmitter
- Range Units – Transmitter: Pa
- Diameter – Transmitter: 0.63 in
- Range Values – Transmitter: 0 to 5000
- Overall Height – Transmitter: 30.0 in
- Overall Depth – Transmitter: 5.0 in
- Transmitter Type: Particulate Transmitter
- Country of Origin (subject to change): United States
