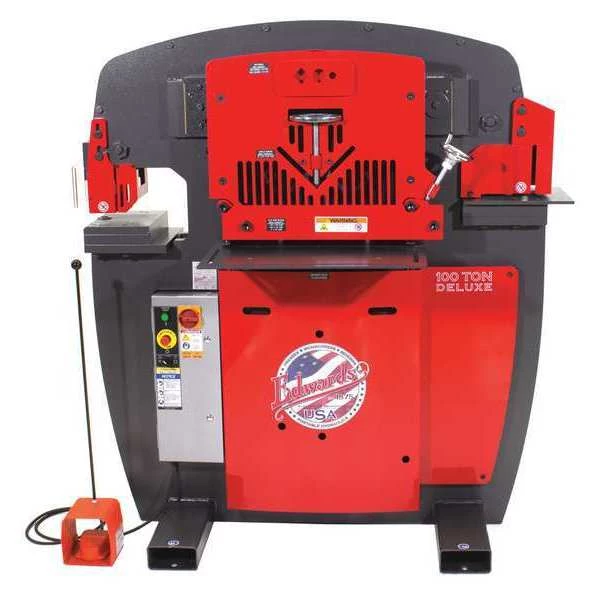

Edwards Ironworker, 26A, 3 Phase, 10 HP, 95 tons
Original price was: $497.00.$92.99Current price is: $92.99.
Ironworker, Voltage 230V AC, Phase Three-Phase, Current 40 A, External Hydraulic Output Force 100 Tonf, Number of Stations 5, Included Tool Types Punch, Punch Capacity Mild Steel 1 in, Punch Throat Depth 11 in
Edwards #IW100DX-3P230-AC800 Specifications
- Zoro #: G7778228
- Mfr #: IW100DX-3P230-AC800
- Item: Ironworker
- Max. Force (Tons): 100
- Speed (Strokes/Minute): 23
- Throat Depth (In.): 11 in
- Application: Metalworking
- Punching Station: 14 in Wide Flat Bar Shear, Angle Shear, Coper Notcher, Rod Shear
- Oil Capacity (Gal.): 17
- Voltage: 230 V
- Amps: 26 A
- Phase: 3
- Motor HP: 10 hp
- Hydraulic Pressure (PSI): 3,800
- Features: Powerlink Sys
- Tool Weight: 5,180 lb
- Series: IW100DX
- Punch Capacity Mild Steel: 1 in
- Overall Height: 63 1/8 in
- Nominal Voltage: 230V AC
- External Hydraulic Output Force: 100 Tonf
- Actuation: Foot Pedal
- Overall Width: 56 in
- Included Tool Types: Punch
- Punch Throat Depth: 11 in
- Number of Stations: 5
- Power Source: Corded
- Nominal Voltage + Phase: 230V AC ; Three-Phase
- Current: 40 A
- Standards: ANSI B11.5-1988(02), ETL Certified
- Horsepower: 10 hp
- Overall Length: 45 1/2 in
- Country of Origin (subject to change): United States
