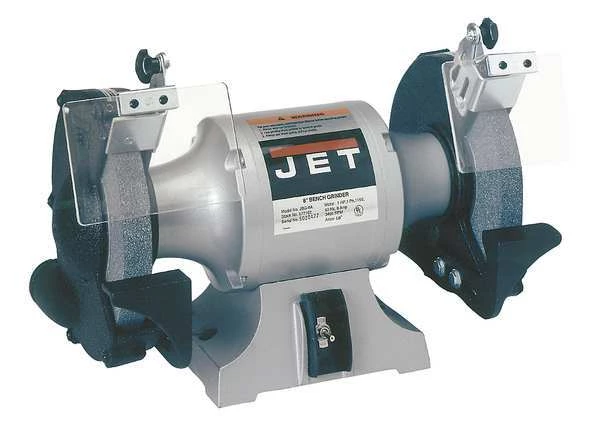

Jet Bench Grinder, 10 in Max. Wheel Dia, 1 in Max. Wheel Thickness, 24/46 Grinding Wheel Grit
Original price was: $580.00.$95.99Current price is: $95.99.
Bench Grinder, For Max. Wheel Dia. 10 in, For Max. Wheel Thickness 1 in, Grinding Wheel Grit 24/46, Arbor Size 1 in, Dust Management Yes, Lights Included No, Application Grinding, Bearing Type Ball Bearing
Jet #577103 Specifications
- Zoro #: G4404337
- Mfr #: 577103
- Item: Bench Grinder
- For Max. Wheel Dia.: 10 in
- Finishing Wheel Width: 1″
- Finishing Function: Grinding
- Max. RPM: 1725
- Phase: 1
- Arbor Hole Size: 1″
- Amps: 3.5
- Standards: UL Listed
- For Max. Wheel Thickness: 1 in
- Grinding Wheel Grit: 24/46
- Voltage: 115V
- HP: 1-1/2
- No Load RPM: 1725
- Includes: Fine and Coarse Vitrified Grinding Wheels
- Wheel Width: 1″
- Dust Collection: Yes
- Wheel Material: Aluminum Oxide
- Overall Height: 10 1/2 in
- Light: No
- Wheel Dia.: 10″
- Exhaust Port Size: 2-1/2″
- Finishing Wheel Diameter: 10″
- Wheels Center-Center: 14-7/8″
- Hz: 60
- Arbor Size: 1 in
- Grit: 36 and 60
- Overall Length: 19 1/4 in
- Features: Adjustable Tool Rests, Cast Iron Wheel Guards and Dust Vents, Large Quick-Adjustment Eye Shields, One-Piece Quick-Adjusting Spark Guards, Rubber Mounts
- Overall Width: 24 1/2 in
- Bearing Type: Ball Bearing
- Dust Collection Port Size: 2 1/2 in
- Max. Wheel Speed: 1,725 RPM
- Lights Included: No
- Application: Grinding
- Frequency: 60 Hz
- Cord Length: 6 ft
- Switch Type: Heavy Duty Guarded Toggle
- Horsepower: 1 1/2
- Current: 3.5A
- Wheel Distance: 14 7/8 in
- Duty: Heavy Duty
- Dust Management: Yes
- Country of Origin (subject to change): China
