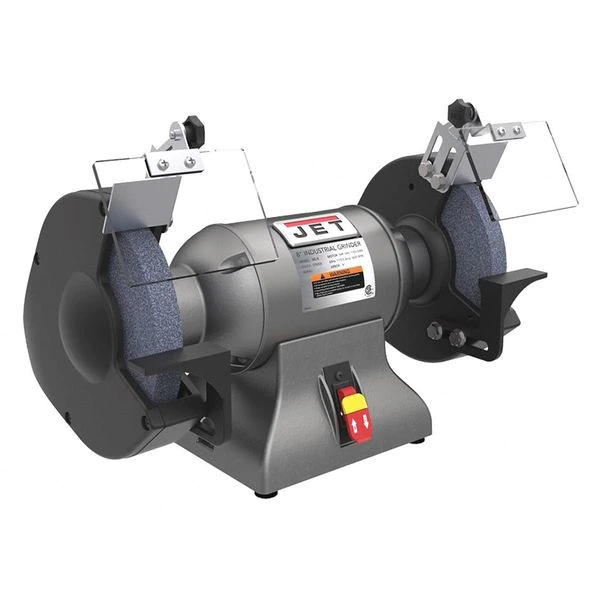

Jet Bench Grinder, 10 in Max. Wheel Dia, 1 in Max. Wheel Thickness, 36/60 Grinding Wheel Grit
Original price was: $492.00.$96.99Current price is: $96.99.
Bench Grinder, For Max. Wheel Dia. 10 in, For Max. Wheel Thickness 1 in, Grinding Wheel Grit 36/60, Arbor Size 1 in, Dust Management No Dust Management, Lights Included No, Application Grinding, Bearing Type Ball Bearing
Jet #578010 Specifications
- Zoro #: G4054219
- Mfr #: 578010
- Item: Bench Grinder
- For Max. Wheel Dia.: 10 in
- Finishing Wheel Width: 1″
- Finishing Function: Grinding
- Max. RPM: 1720
- Phase: 1
- Arbor Hole Size: 1″
- Amps: 10
- Standards: CSA/CUS Certified, OSHA Compliant, UL Listed
- For Max. Wheel Thickness: 1 in
- Grinding Wheel Grit: 36/60
- Voltage: 115V
- HP: 1-1/2
- Dust Collection: No
- Hz: 60
- Wheel Material: Aluminum Oxide
- No Load RPM: 1720
- Grit: 36 and 60
- Wheel Width: 1″
- Overall Length: 27 in
- Wheel Dia.: 10″
- Light: No
- Arbor Size: 1 in
- Overall Height: 18 in
- Includes: Adjustable Safety Shields, Adjustable Tool Rests, Fine and Coarse Vitrified Grinding Wheels, Single Dust Chute, Wheel Dresser
- Finishing Wheel Diameter: 10″
- Wheels Center-Center: 8-3/4″
- Exhaust Port Size: 2-1/2″
- Features: Pre-Drilled Bases for Stand or Work Bench Mounting
- Overall Width: 21.1 in
- Lights Included: No
- Application: Grinding
- Housing Material: Cast Iron
- Horsepower: 1 1/2
- Dust Management: No Dust Management
- Cord Length: 6 ft
- Current: 10A
- Sound Level: 75dB @ 3 ft
- Wheel Distance: 8 3/4 in
- Frequency: 60 Hz
- Duty: Heavy Duty
- Max. Wheel Speed: 1,800 RPM
- Bearing Type: Ball Bearing
- Dust Collection Port Size: 2 1/2 in
- Switch Type: Paddle with Safety Key
- Country of Origin (subject to change): Taiwan, Province of China
