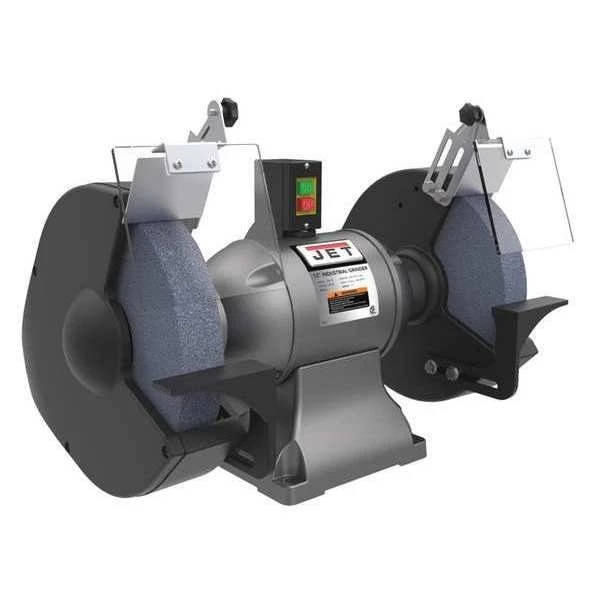

Jet Bench Grinder, 12 in Max. Wheel Dia, 2 in Max. Wheel Thickness, 36/60 Grinding Wheel Grit
Original price was: $414.00.$93.99Current price is: $93.99.
Bench Grinder, For Max. Wheel Dia. 12 in, For Max. Wheel Thickness 2 in, Grinding Wheel Grit 36/60, Arbor Size 1 1/4 in, Dust Management Yes, Lights Included No, Application Grinding, Bearing Type Ball Bearing
Jet #578012 Specifications
- Zoro #: G4054200
- Mfr #: 578012
- Item: Bench Grinder
- For Max. Wheel Dia.: 12 in
- Finishing Wheel Width: 2″
- Finishing Function: Grinding
- Max. RPM: 3450
- Phase: 1
- Arbor Hole Size: 1-1/4″
- Amps: 10
- Standards: CSA/CUS Certified, OSHA Compliant, UL Listed
- For Max. Wheel Thickness: 2 in
- Grinding Wheel Grit: 36/60
- Voltage: 230V
- HP: 2
- No Load RPM: 1720
- Overall Height: 12 1/2 in
- Wheels Center-Center: 8-3/4″
- Grit: 36 and 60
- Hz: 60
- Wheel Width: 2″
- Arbor Size: 1 1/4 in
- Includes: Adjustable Safety Shields, Adjustable Tool Rests, Fine and Coarse Vitrified Grinding Wheels, Single Dust Chute, Wheel Dresser
- Wheel Dia.: 12″
- Finishing Wheel Diameter: 12″
- Overall Length: 19 in
- Dust Collection: Yes
- Wheel Material: Aluminum Oxide
- Light: No
- Exhaust Port Size: 2-1/2″
- Features: Pre-Drilled Bases for Stand or Work Bench Mounting
- Overall Width: 27.56 in
- Lights Included: No
- Dust Collection Port Size: 2 1/2 in
- Duty: Heavy Duty
- Max. Wheel Speed: 1,800 RPM
- Cord Length: 6 ft
- Frequency: 60 Hz
- Sound Level: 80dB @ 3 ft
- Current: 10A
- Horsepower: 2 HP
- Bearing Type: Ball Bearing
- Housing Material: Cast Iron
- Wheel Distance: 8 3/4 in
- Switch Type: Push Button
- Application: Grinding
- Dust Management: Yes
- Country of Origin (subject to change): Taiwan, Province of China
