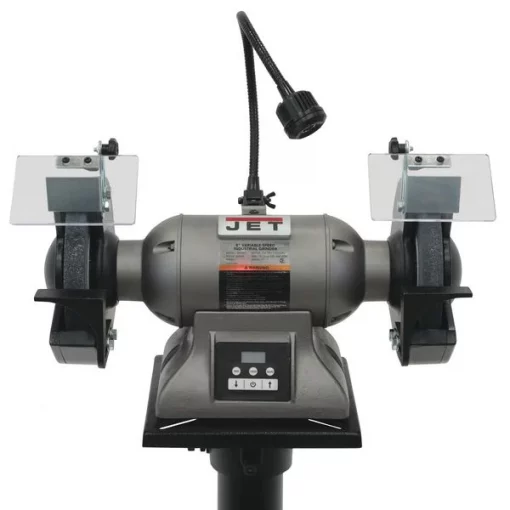

Jet Bench Grinder, 8 in Max. Wheel Dia, 1 in Max. Wheel Thickness, 36/60 Grinding Wheel Grit
Original price was: $473.00.$92.99Current price is: $92.99.
Bench Grinder, For Max. Wheel Dia. 8 in, For Max. Wheel Thickness 1 in, Grinding Wheel Grit 36/60, Speed Setting Variable Speed, Arbor Size 5/8 in, Dust Management Dust Management Included, Lights Included No, Application Grinding, Bearing Type Ball Bearing
Jet #IBG-8VS Specifications
- Zoro #: G4773139
- Mfr #: IBG-8VS
- Item: Bench Grinder
- For Max. Wheel Dia.: 8 in
- Finishing Wheel Width: 1/2″
- Finishing Function: Buffing, Grinding
- Max. RPM: 3600
- Phase: 1
- Arbor Hole Size: 5/8″
- Amps: 11/5.5
- Standards: CSA/CUS Certified
- For Max. Wheel Thickness: 1 in
- Grinding Wheel Grit: 36/60
- Voltage: 115V
- HP: 1
- Finishing Wheel Diameter: 8″
- Overall Length: 23 27/64 in
- Wheel Material: Stone
- Overall Height: 9 29/64 in
- Light: No
- Exhaust Port Size: 2″
- Grit: 36 and 60
- Dust Collection: No
- Wheels Center-Center: 18″
- Hz: 60
- Includes: (2) Grinding Wheels, Adjustable Tool Rests, Large Eye Safety Shields, Single Outlet Collection Hose, Wheel Dresser, Wheel Guards
- Features: Adjustable Cast Iron Tool Rests, Brake Resistor for Rapid Wheel Stoppage, Cast Iron Wheel Guards, Rubber Mounts, Variable Speed for Wide RPM Range
- Arbor Size: 5/8 in
- Overall Width: 22 1/2 in
- Housing Material: Cast Iron
- Wheel Distance: 18 in
- Dust Management: Dust Management Included
- Speed Setting: Variable Speed
- Bearing Type: Ball Bearing
- Horsepower: 1
- Lights Included: No
- Switch Type: TACT
- Cord Length: 6 ft
- Sound Level: 75dB @ 3 ft
- Dust Collection Port Size: 2 1/2 in
- Frequency: 60 Hz
- Current: 11/5.5A
- Min. Wheel Speed: 900 RPM
- Application: Grinding
- Max. Wheel Speed: 3,600 RPM
- Country of Origin (subject to change): Taiwan, Province of China
