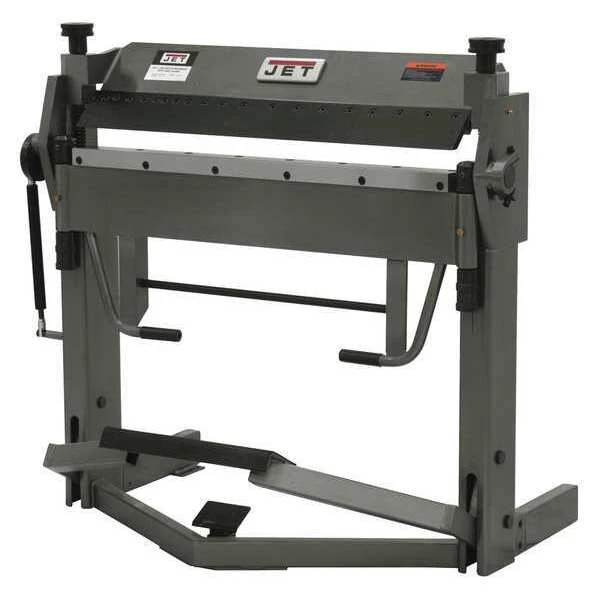

Jet Box & Pan Brake Foot Clamp, 40 In. L
Original price was: $455.00.$96.99Current price is: $96.99.
Sheet Metal Brake, Brake Type Box and Pan, Actuation Foot Pedal, Sheet Capacity Aluminum 10 ga, Sheet Metal Capacity Mild Steel 12 ga, Sheet Metal Capacity Stainless Steel 18 ga, Maximum Bend Angle 135 Degrees , Finger Style Top Edge, Finger Width 1 in, 1 1/8 in, 1 3/8 in, 1 1/2 in, 1 3/4 in, 2 in, 3 in, 4 in, 6 in, 7 3/4 in, 10 5/8 in
Jet #752125 Specifications
- Zoro #: G9947314
- Mfr #: 752125
- Item: Sheet Metal Brake
- Bending Length (In.): 40 in
- Capacity of Mild Steel (Gauge): 12
- Finger Width (In.): 1 1/8 in, 1 3/8 in, 1 1/2 in, 1 3/4 in, 2 in, 3 in, 4 in, 6 in, 7 3/4 in, 10 5/8 in
- Max. Box Depth (In.): 2 1/2 in
- Max. Lift of Beam (In.): 1 7/8 in
- Actuation + Finger Style: Foot Pedal : Top Edge
- Power Source: Manual
- Bending Length: 40 in
- Finger Style: Top Edge
- Maximum Lift of Beam: 1 7/8 in
- Overall Length: 58 in
- Overall Height: 50 in
- Overall Width: 25 in
- Maximum Bend Angle: 135 Degrees
- Sheet Capacity Aluminum: 10 ga
- Finger Width: 1 in, 1 1/8 in, 1 3/8 in, 1 1/2 in, 1 3/4 in, 2 in, 3 in, 4 in, 6 in, 7 3/4 in, 10 5/8 in
- Maximum Box Depth: 2 1/2 in
- Color: Gray
- Sheet Metal Capacity Mild Steel: 12 ga
- Material: Steel
- Brake Type: Box and Pan
- Actuation: Foot Pedal
- Sheet Metal Capacity Stainless Steel: 18 ga
- Country of Origin (subject to change): China
