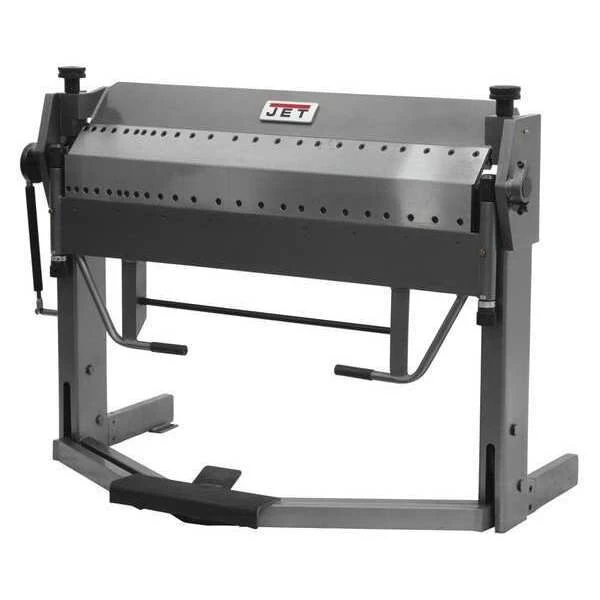

Jet Box and Pan Brake, 50 in Bending Length, 0 Rolls
Original price was: $571.00.$94.99Current price is: $94.99.
Sheet Metal Brake, Brake Type Box and Pan, Actuation Foot Pedal, Sheet Capacity Aluminum 14 ga, Sheet Metal Capacity Mild Steel 16 ga, Sheet Metal Capacity Stainless Steel 22 ga, Maximum Bend Angle 135 Degrees , Finger Style Top and Bottom Edge, Finger Width 1 in, 1 1/8 in, 1 3/8 in, 1 1/2 in, 1 3/4 in, 2 in, 3 in, 4 in, 6 in, 7 3/4 in, 10 in, 10 5/8 in
Jet #PBF-1650D Specifications
- Zoro #: G7685968
- Mfr #: PBF-1650D
- Item: Sheet Metal Brake
- Bending Length (In.): 50 in
- Rolls: 0
- Capacity of Mild Steel (Gauge): 16
- Max. Lift of Beam (In.): 1 13/16 in
- Finger Width (In.): 1 in, 1 1/8 in, 1 3/8 in, 1 1/2 in, 1 3/4 in, 2 in, 3 in, 4 in, 6 in, 7 3/4 in, 10 5/8 in
- Construction: Cast iron
- Features: Dual Sided Box and Pan Brake Adapts to A Wide Range of Applications, Easily Add and Remove Upper and Lower Fingers for Multiple Bends, The JET Exclusive Graduated Scale On Each Side Improves Accuracy When Setting Lower Exam Parallelism
- Max. Box Depth (In.): 67 11/16 in
- Actuation + Finger Style: Foot Pedal : Top and Bottom Edge
- Finger Style: Top and Bottom Edge
- Material: Cast Iron
- Brake Type: Box and Pan
- Actuation: Foot Pedal
- Sheet Metal Capacity Stainless Steel: 22 ga
- Overall Height: 51 1/2 in
- Color: Gray
- Sheet Capacity Aluminum: 14 ga
- Power Source: Manual
- Overall Length: 67 3/8 in
- Sheet Metal Capacity Mild Steel: 16 ga
- Maximum Bend Angle: 135 Degrees
- Overall Width: 28 in
- Finger Width: 1 in, 1 1/8 in, 1 3/8 in, 1 1/2 in, 1 3/4 in, 2 in, 3 in, 4 in, 6 in, 7 3/4 in, 10 in, 10 5/8 in
- Country of Origin (subject to change): China
