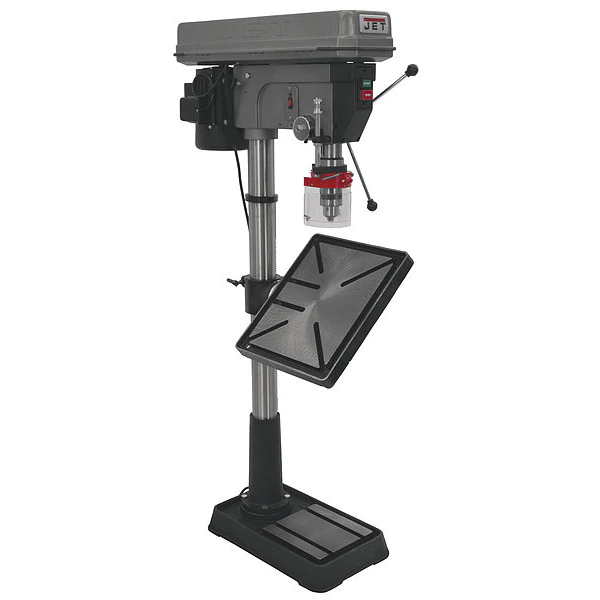

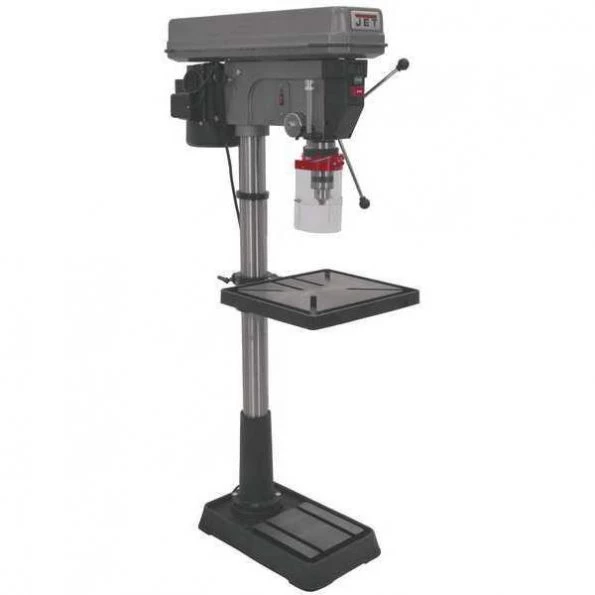

Jet Floor Drill Press, Belt Drive, 1 1/2 hp, 115/230 V, 20 in Swing, 12 Speed
Original price was: $557.00.$94.99Current price is: $94.99.
Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 1 1/2 hp, Voltage 115/230V AC, Spindle Taper MT3, Number of Speeds 12, Chuck Size 3/4 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 2 7/16 in, Drilling Capacity in Steel 5/8 in
Jet #354170 Specifications
- Zoro #: G4920395
- Mfr #: 354170
- Drill Press Product Grouping: General Purpose Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 20 in
- Voltage: 115/230
- Motor HP: 1 1/2 hp
- Chuck Size: 3/4 in
- Number of Speeds: 12
- Capacity Steel: 3/4 in
- Spindle Speed: 150 to 4200 rpm
- Corded/Banded: Corded
- Table Work Surface: 18-1/2 in x 16 in
- Column Dia.: 3 3/8 in
- Drilling Capacity Wood: Not Specified
- Hz: 60
- Power Down Feed Included: No
- Overall Width: 26 1/2 in
- Includes: Chuck with Key
- Spindle Travel: 4 5/8 in
- Spindle to Table: 29 1/8 in
- Overall Height: 58 in
- Spindle Taper: MT3
- Corded/Cordless: Corded
- Quill Dia.: 2 7/16 in
- Table Slot Size: 1/2 in
- Tilting Angle: 45 Degrees
- Max. Spindle To Base: 46 3/4 in
- Overall Depth: 13 in
- Number of T-Slots: 6
- Base Size: 13-3/4 in x 22-3/4 in
- Phase: 1
- Capacity Cast Iron: 1 in
- Drilling Capacity in Cast Iron: 1 in
- Table Slot Width: 1/2 in
- Drilling Capacity in Stainless Steel: 5/8 in
- Base Width: 22 3/4 in
- Current: 18/9 A
- Table Load Capacity: 80 lb
- Power Source: Corded

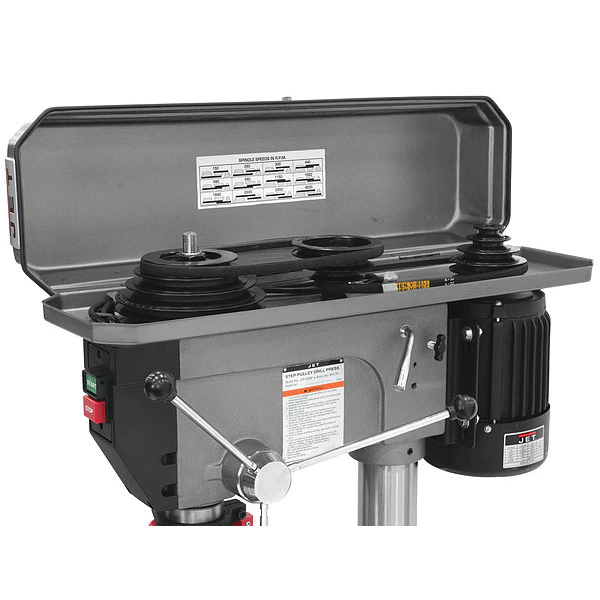

- Speed Adjustment: Step Pulley
- Horsepower: 1 1/2 hp
- Table Width: 16 in
- Table Tilt: 45 Degrees
- Drilling Capacity in Steel: 5/8 in
- Motor Voltage: 115/230V AC ; Single-Phase
- Chuck Capacity: 3/4 in
- Speed Control: Fixed
- Speed Range: 150 to 4,200 RPM
- Maximum Overall Height: 67 in
- Spindle Speed Range: 150 RPM – 4,200 RPM
- Maximum Spindle-to-Base Height: 46 3/4 in
- Table Slot: Yes
- Primary Material Application: Metal
- Drill Press Application: Drilling
- Drilling Capacity in Wood: 3/4 in
- Maximum Spindle-to-Table Height: 29 1/8 in
- Guard Included: Yes
- Column Diameter: 3 3/8 in
- Quill Diameter: 2 7/16 in
- Chuck Style: Keyed
- Drill Spindle Travel: 4 in – 5 in
- Coolant System: No
- Base Length: 13 3/4 in
- Maximum Spindle Speed: 4,200 RPM
- Overall Length: 33 1/2 in
- Table Shape: Rectangular
- Drill Press Type: Floor Stand
- Table Length: 18 1/2 in
- Minimum Spindle Speed: 150 RPM
- Radial Arm: No
- Number of Spindle Speeds: 12
- Spindle-to-Column Distance: 10 in
- Nominal Voltage: 115/230V AC
- Country of Origin (subject to change): China
