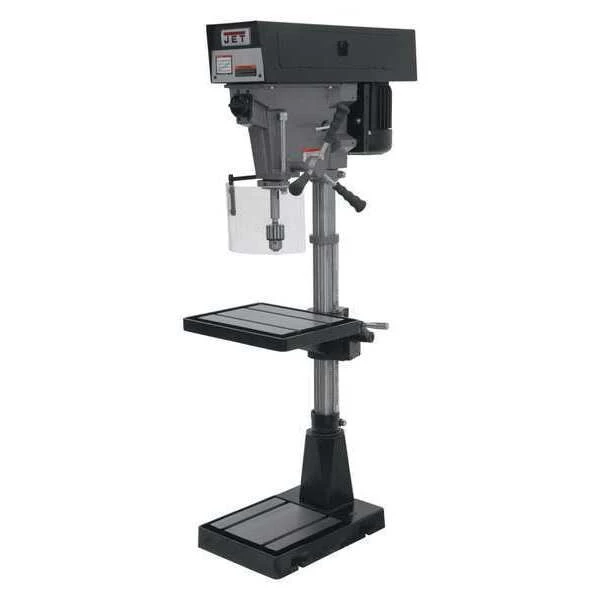

Jet Floor Drill Press, Belt Drive, 1 hp, 115/230 V, 15 in Swing, 6 Speed
Original price was: $513.00.$98.99Current price is: $98.99.
Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Variable, Speed Adjustment Step Pulley, Swing 15 in, Spindle-to-Column Distance 15 in, Horsepower 1 hp, Voltage 115/230V AC, Spindle Taper 2MT, Number of Speeds 6, Chuck Size 1/2 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 2 1/4 in, Drilling Capacity in Steel 1/2 in
Jet #354500 Specifications
- Zoro #: G9879247
- Mfr #: 354500
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 15 in
- Voltage: 115/230
- Motor HP: 1 hp
- Chuck Size: Not Included
- Number of Speeds: 6
- Capacity Steel: 1/2 in
- Spindle Speed: 400 to 5000 rpm
- Includes: Front Mounted LED Spindle Speed Readout, Integrated Tapping Control, Tapping Mode with Break, Continuous Speed Adjustment, Front Mounted Depth Stop
- Spindle Taper: 2MT
- Power Down Feed Included: No
- Overall Height: 71 in
- Column Dia.: 3 in
- Hz: 60
- Table Work Surface: 12-1/2 in x 14 1/2 in
- Spindle Travel: 6 in
- Corded/Cordless: Corded
- Phase: 1
- Number of T-Slots: 2
- Overall Depth: 30 in
- Base Size: 20-7/8 in x 14-3/16 in
- Capacity Cast Iron: 5/8 in
- Quill Dia.: 2 1/4 in
- Spindle to Table: 25 3/4 in
- Max. Spindle To Base: 44 1/2 in
- Amps AC: 14.0
- Drilling Capacity Wood: Not Specified
- Table Slot Size: 1/2 in
- Corded/Banded: Corded
- Overall Width: 20 in
- Overall Length: 30 in
- Table Shape: Rectangular
- Chuck Capacity: 1/2 in
- Drill Spindle Travel: 6 in – 7 in
- Current: 14 A
- Drill Press Application: Drilling
- Table Width: 18 in
- Spindle Speed Range: 375 RPM – 5,000 RPM
- Table Length: 15 in
- Spindle-to-Column Distance: 15 in
- Drilling Capacity in Stainless Steel: 25/64 in
- Minimum Spindle Speed: 375 RPM
- Speed Control: Variable
- Power Source: Corded
- Speed Range: 400 to 5,000 RPM
- Drilling Capacity in Steel: 1/2 in
- Horsepower: 1 hp
- Table Slot: Yes
- Table Slot Width: 1/2 in
- Guard Included: Yes
- Radial Arm: No
- Motor Voltage: 115/230V AC ; Single-Phase
- Maximum Spindle-to-Table Height: 25 3/4 in
- Coolant System: No
- Quill Diameter: 2 1/4 in
- Primary Material Application: Metal
- Table Load Capacity: 90 lb
- Drilling Capacity in Cast Iron: 5/8 in
- Drilling Capacity in Wood: 5/8 in
- Base Width: 14 1/4 in
- Column Diameter: 3 in
- Maximum Overall Height: 71 in
- Speed Adjustment: Step Pulley
- Maximum Spindle Speed: 5,000 RPM
- Maximum Spindle-to-Base Height: 44 1/2 in
- Base Length: 20 7/8 in
- Chuck Style: Keyed
- Base Height: 3 1/8 in
- Drill Press Type: Floor Stand
- Number of Spindle Speeds: 6
- Nominal Voltage: 115/230V AC
- Country of Origin (subject to change): Taiwan, Province of China
