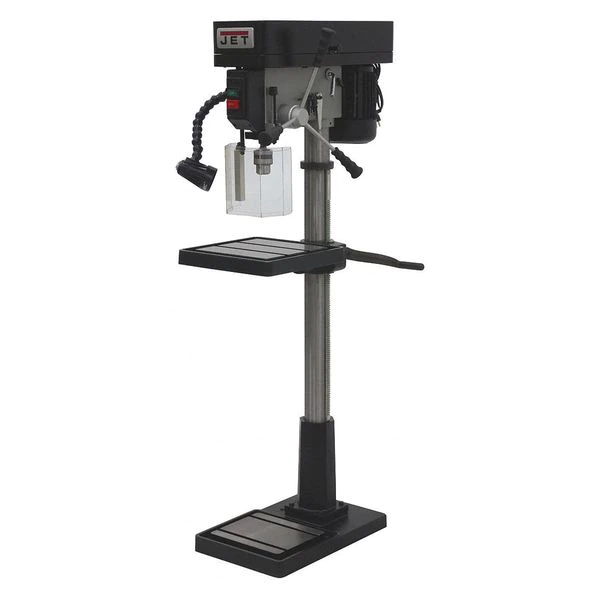

Jet Floor Drill Press, Belt Drive, 1 hp, 115/230 V, 16 7/8 in Swing, 12 Speed
Original price was: $576.00.$94.99Current price is: $94.99.
Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 16 7/8 in, Spindle-to-Column Distance 8 3/8 in, Horsepower 1 hp, Voltage 115/230V AC, Spindle Taper 2MT, Number of Speeds 16, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 2 1/16 in, Drilling Capacity in Steel 5/8 in
Jet #IDP-17 Specifications
- Zoro #: G4841691
- Mfr #: IDP-17
- Drill Press Product Grouping: General Purpose Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 16 7/8 in
- Voltage: 115/230
- Motor HP: 1 hp
- Chuck Size: 5/8 in
- Number of Speeds: 16
- Capacity Steel: 5/8 in
- Spindle Speed: 350 to 2800 rpm
- Max. Spindle To Base: 50 in
- Spindle Taper: 2MT
- Table Slot Size: 1/2 in x 1 in
- Hz: 60
- Phase: 1
- Overall Depth: 27 1/2 in
- Corded/Banded: Corded
- Overall Height: 63 in
- Amps AC: 8.9
- Spindle Travel: 3 5/16 in
- Capacity Cast Iron: 3/4 in
- Spindle to Table: 30 1/2 in
- Column Dia.: 3 1/8 in
- Number of T-Slots: 2
- Base Size: 21-3/4 in x 13-3/4 in x 2-3/16 in
- Table Work Surface: 14 in x 14 in
- Corded/Cordless: Corded
- Power Down Feed Included: No
- Overall Width: 16 3/4 in
- Quill Dia.: 2 1/16 in
- Tilting Angle: 45 Degrees
- Includes: Arbor, Chuck with Key, Drift Key, Hex Wrenches, Wrench
- Motor Voltage: 115/230V AC ; Single-Phase
- Guard Included: Yes
- Column Diameter: 3 1/8 in
- Drilling Capacity in Stainless Steel: 5/8 in
- Table Slot: Yes
- Tapping Compatible: No
- Power Source: Corded
- Current: 9 A
- Spindle-to-Column Distance: 8 3/8 in
- Primary Material Application: Metal
- Chuck Capacity: 5/8 in
- Table Shape: Square
- Number of Spindle Speeds: 16
- Drill Press Type: Floor Stand
- Chuck Style: Keyed
- Minimum Spindle Speed: 350 RPM
- Table Length: 14 in
- Drill Press Application: Drilling
- Base Width: 13 3/4 in
- Base Length: 21 3/4 in
- Speed Range: 350 to 2,800 RPM
- Spindle Speed Range: 350 RPM – 2,800 RPM
- Maximum Spindle-to-Table Height: 30 1/2 in
- Speed Control: Fixed
- Drilling Capacity in Steel: 5/8 in
- Speed Adjustment: Step Pulley
- Overall Length: 27 1/2 in
- Table Slot Width: 1/2 in
- Maximum Overall Height: 63 in
- Table Tilt: 45 Degrees
- Quill Diameter: 2 1/16 in
- Drilling Capacity in Cast Iron: 3/4 in
- Horsepower: 1 hp
- Coolant System: No
- Drill Spindle Travel: 3 in – 4 in
- Table Width: 14 in
- Maximum Spindle-to-Base Height: 50 in
- Base Height: 2 1/4 in
- Standards: CSA Certified
- Maximum Spindle Speed: 2,800 RPM
- Nominal Voltage: 115/230V AC
- Country of Origin (subject to change): Taiwan, Province of China
