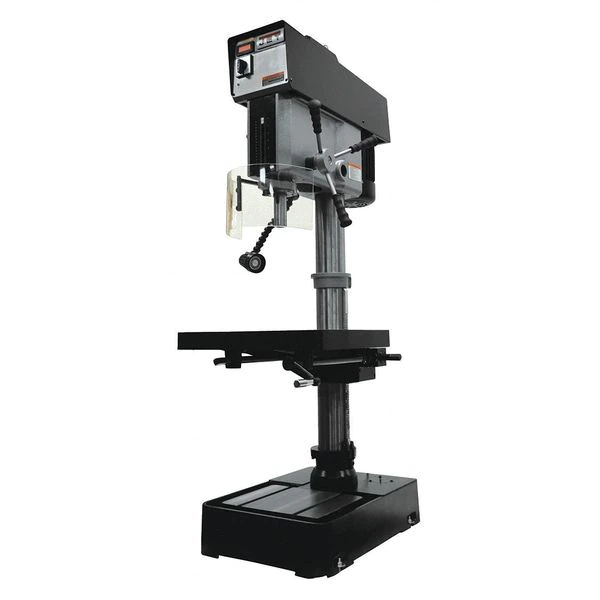

Jet Floor Drill Press, Belt Drive, 2 hp, 115/230 V, 20 in Swing, Variable Speed
Original price was: $572.00.$96.99Current price is: $96.99.
Production Drill Presses, Floor Drill Press, Drive Type Belt, Swing 20 in, Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1 in, Capacity Cast Iron 1 1/4 in, Drilling Capacity Wood Not Specified, Includes Crank Handle, Drift Key, Socket Wrench, Power Down Feed Included No, Voltage 115/230, Amps AC 25.0/13.0, Number of Speeds Variable, Chuck Size Not Included, Spindle Speed 300 to 2000 rpm, Spindle Travel 6 in, Base Size 27 in x 19 in, Table Work Surface 22 in x 18-1/2 in, Hz 60, Phase 1
Jet #JDP-20VS-1 Specifications
- Zoro #: G7685828
- Mfr #: JDP-20VS-1
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 20 in
- Voltage: 115/230
- Motor HP: 2 hp
- Chuck Size: Not Included
- Number of Speeds: Variable
- Capacity Steel: 1 in
- Spindle Speed: 300 to 2000 rpm
- Overall Height: 79 35/64 in
- Spindle Taper: 3MT
- Base Size: 27 in x 19 in
- Number of T-Slots: 3
- Capacity Cast Iron: 1 1/4 in
- Column Dia.: 4 1/2 in
- Quill Dia.: 3 in
- Phase: 1
- Hz: 60
- Amps AC: 25.0/13.0
- Corded/Banded: Corded
- Max. Spindle To Base: 43 1/2 in
- Spindle Travel: 6 in
- Includes: Crank Handle, Drift Key, Socket Wrench
- Drilling Capacity Wood: Not Specified
- Corded/Cordless: Corded
- Overall Depth: 38 3/16 in
- Spindle to Table: 30 1/4 in
- Table Slot Size: 5/8 in
- Overall Width: 27 5/32 in
- Table Work Surface: 22 in x 18-1/2 in
- Power Down Feed Included: No
- Drilling Capacity in Wood: 1 1/4 in
- Current: 25/13 A
- Table Load Capacity: 154 lb
- Table Width: 18 3/4 in
- Power Source: Corded
- Table Slot Width: 5/8 in
- Drilling Capacity in Steel: 1 in
- Radial Arm: No
- Drill Press Type: Floor Stand
- Tapping Compatible: Yes
- Drill Press Application: Drilling
- Overall Length: 38 1/8 in
- Motor Voltage: 115/230V AC ; Single-Phase
- Base Length: 27 in
- Speed Range: 300 to 2,000 RPM
- Maximum Spindle Speed: 2,000 RPM
- Horsepower: 2 hp
- Drilling Capacity in Cast Iron: 1 1/4 in
- Standards: CSA Certified, CUS Certified
- Chuck Style: Keyed
- Speed Adjustment: Mechanical Variable Speed Drive System
- Number of Spindle Speeds: Variable
- Table Length: 22 in
- Minimum Spindle Speed: 300 RPM
- Spindle-to-Column Distance: 10 7/16 in
- Table Shape: Rectangular
- Quill Diameter: 2 61/64 in
- Column Diameter: 4 1/2 in
- Table Slot: Yes
- Maximum Spindle-to-Table Height: 30 1/4 in
- Coolant System: No
- Base Width: 19 in
- Drilling Capacity in Stainless Steel: 3/4 in
- Speed Control: Variable
- Drill Spindle Travel: 6 in – 7 in
- Primary Material Application: Metal
- Spindle Speed Range: 300 RPM – 2,000 RPM
- Maximum Spindle-to-Base Height: 44 1/2 in
- Maximum Overall Height: 79 1/2 in
- Guard Included: Yes
- Nominal Voltage: 115/230V AC
- Country of Origin (subject to change): Taiwan, Province of China
