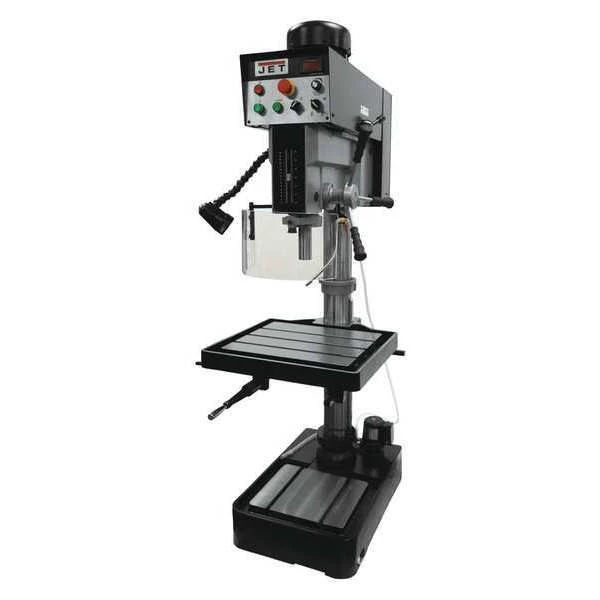

Jet Floor Drill Press, Belt Drive, 2 hp, 230 V, 20 in Swing, Variable Speed
Original price was: $484.00.$94.99Current price is: $94.99.
Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Tapping, Speed Control Variable, Speed Adjustment Mechanical Variable Speed Drive System, Swing 20 in, Spindle-to-Column Distance 10 7/16 in, Horsepower 2 hp, Voltage 230V AC, Spindle Taper 3MT, Number of Speeds Variable, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included Yes, Coolant System Yes, Quill Diameter 2 61/64 in
Jet #JDP-20EVST -230 Specifications
- Zoro #: G7480536
- Mfr #: JDP-20EVST -230
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 20 in
- Voltage: 230
- Motor HP: 2 hp
- Chuck Size: Not Included
- Number of Speeds: Variable
- Capacity Steel: 1 3/8 in
- Spindle Speed: 65 to 2000 rpm
- Phase: 3
- Max. Spindle To Base: 44 1/2 in
- Drilling Capacity Wood: Not Specified
- Column Dia.: 4 1/2 in
- Overall Width: 27 in
- Overall Height: 79 1/2 in
- Spindle to Table: 30 1/4 in
- Spindle Travel: 6 in
- Capacity Cast Iron: 1 1/2 in
- Base Size: 27 in x 19 in
- Includes: Chuck Guard
- Corded/Cordless: Corded
- Overall Depth: 38 3/16 in
- Corded/Banded: Corded
- Spindle Taper: 3MT
- Number of T-Slots: 2
- Table Work Surface: 18-1/8 in x 14-3/4 in
- Hz: 60
- Table Slot Size: 5/8 in
- Amps AC: 9.2
- Power Down Feed Included: No
- Drill Press Application: Drilling, Tapping
- Chuck Style: Keyed
- Table Width: 18 3/4 in
- Drill Press Type: Floor Stand
- Speed Range: 65 to 2,000 RPM
- Tapping Compatible: Yes
- Table Slot: Yes
- Quill Diameter: 2 61/64 in
- Speed Control: Variable
- Table Slot Width: 5/8 in
- Horsepower: 2 hp
- Current: 9.2 A
- Spindle-to-Column Distance: 10 7/16 in
- Base Length: 27 in
- Base Width: 19 in
- Maximum Spindle Speed: 2,000 RPM
- Guard Included: Yes
- Minimum Spindle Speed: 245 RPM
- Overall Length: 38 1/8 in
- Spindle Speed Range: 245 RPM – 2,000 RPM
- Table Load Capacity: 154 lb
- Radial Arm: No
- Standards: CSA Certified, CUS Certified
- Maximum Spindle-to-Base Height: 44 1/2 in
- Number of Spindle Speeds: Variable
- Table Shape: Rectangular
- Tapping Capacity in Stainless Steel: 5/8 in
- Drilling Capacity in Steel: 1 3/8 in
- Table Length: 22 in
- Coolant System: Yes
- Power Source: Corded
- Column Diameter: 4 1/2 in
- Maximum Spindle-to-Table Height: 30 1/4 in
- Drill Spindle Travel: 6 in – 7 in
- Drilling Capacity in Wood: 1 1/2 in
- Primary Material Application: Metal
- Drilling Capacity in Cast Iron: 1 1/2 in
- Speed Adjustment: Mechanical Variable Speed Drive System
- Tapping Capacity in Steel: 3/4 in
- Drilling Capacity in Stainless Steel: 1 in
- Motor Voltage: 230V AC ; Three-Phase
- Maximum Overall Height: 79 1/2 in
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): Taiwan, Province of China
