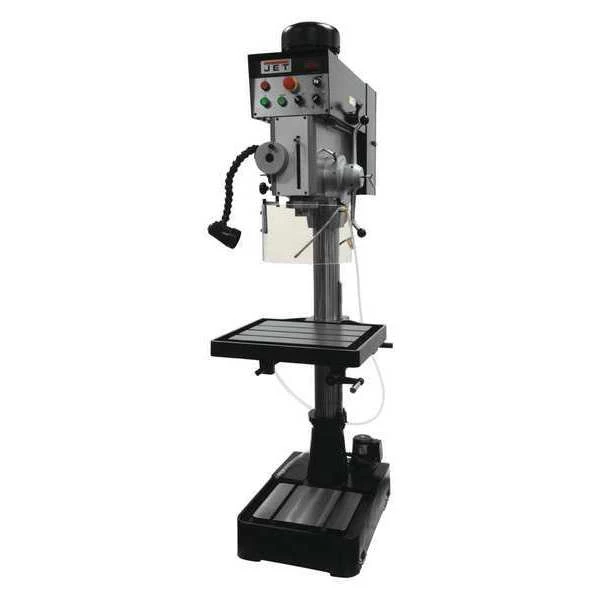

Jet Floor Drill Press, Belt Drive, 2 hp, 230 V, 20 in Swing, Variable Speed
Original price was: $421.00.$92.99Current price is: $92.99.
Floor Drill Press, Primary Material Application Metal, Power Down Feed Included Yes, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Variable, Speed Adjustment Mechanical Variable Speed Drive System, Swing 20 in, Spindle-to-Column Distance 10 7/16 in, Horsepower 2 hp, Voltage 230V AC, Spindle Taper 3MT, Number of Speeds Variable, Chuck Size 3/4 in, Chuck Style Keyed, Guard Included Yes, Coolant System Yes, Quill Diameter 2 61/64 in, Tapping Capacity in Steel 1 in
Jet #JDP20EVST-230-PDF Specifications
- Zoro #: G7472057
- Mfr #: JDP20EVST-230-PDF
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 20 in
- Voltage: 230
- Motor HP: 2 hp
- Chuck Size: Not Included
- Number of Speeds: Variable
- Capacity Steel: 1 3/8 in
- Spindle Speed: 65 to 2000 rpm
- Spindle to Table: 30 1/4 in
- Table Slot Size: 5/8 in
- Column Dia.: 4 1/2 in
- Phase: 3
- Spindle Taper: 3MT
- Includes: Chuck Guard
- Drilling Capacity Wood: Not Specified
- Capacity Cast Iron: 1 1/2 in
- Spindle Travel: 6 in
- Corded/Cordless: Corded
- Overall Width: 27 in
- Corded/Banded: Corded
- Table Work Surface: 18-1/8 in x 14-3/4 in
- Power Down Feed Included: Yes
- Overall Depth: 38 3/16 in
- Base Size: 27 in x 19 in
- Overall Height: 79 1/2 in
- Amps AC: 9.2
- Max. Spindle To Base: 44 1/2 in
- Hz: 60
- Number of T-Slots: 2
- Table Load Capacity: 154 lb
- Radial Arm: No
- Table Slot: Yes
- Spindle-to-Column Distance: 10 7/16 in
- Table Length: 22 in
- Column Diameter: 4 1/2 in
- Spindle Speed Range: 225 RPM – 2,000 RPM
- Chuck Style: Keyed
- Drilling Capacity in Stainless Steel: 1 3/8 in
- Guard Included: Yes
- Coolant System: Yes
- Tapping Capacity in Steel: 1 in
- Minimum Spindle Speed: 225 RPM
- Drilling Capacity in Cast Iron: 2 5/32 in
- Drill Press Application: Drilling
- Speed Control: Variable
- Table Slot Width: 5/8 in
- Number of Spindle Speeds: Variable
- Primary Material Application: Metal
- Maximum Spindle-to-Base Height: 44 11/16 in
- Tapping Compatible: Yes
- Base Length: 27 in
- Maximum Overall Height: 78 3/4 in
- Base Width: 19 in
- Motor Voltage: 230V AC ; Three-Phase
- Quill Diameter: 2 61/64 in
- Drilling Capacity in Steel: 2 in
- Horsepower: 2 hp
- Overall Length: 42 1/2 in
- Current: 9.2 A
- Speed Range: 65 to 2,000 RPM
- Table Shape: Rectangular
- Standards: CSA Certified, CUS Certified
- Tapping Capacity in Stainless Steel: 3/4 in
- Drill Press Type: Floor Stand
- Maximum Spindle Speed: 2,000 RPM
- Drill Spindle Travel: 6 in – 7 in
- Power Source: Corded
- Speed Adjustment: Mechanical Variable Speed Drive System
- Maximum Spindle-to-Table Height: 25 1/2 in
- Table Width: 18 3/4 in
- Drilling Capacity in Wood: 2 5/32 in
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): Taiwan, Province of China
