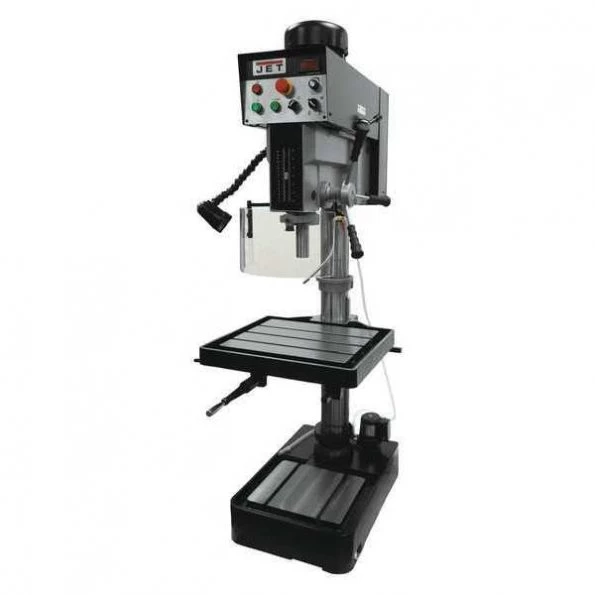

Jet Floor Drill Press, Belt Drive, 2 hp, 460 V, 20 in Swing, Variable Speed
Original price was: $488.00.$92.99Current price is: $92.99.
Production Drill Presses, Floor Drill Press, Drive Type Belt, Swing 20 in, Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1 3/8 in, Capacity Cast Iron 1 1/2 in, Drilling Capacity Wood Not Specified, Includes Chuck Guard, Power Down Feed Included No, Voltage 460, Amps AC 9.2, Number of Speeds Variable, Chuck Size Not Included, Spindle Speed 65 to 2000 rpm, Spindle Travel 6 in, Base Size 27 in x 19 in, Table Work Surface 18-1/8 in x 14-3/4 in, Hz 60, Phase 3, Number of T-Slots 2
Jet #JDP-20EVST-460 Specifications
- Zoro #: G7473210
- Mfr #: JDP-20EVST-460
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 20 in
- Voltage: 460
- Motor HP: 2 hp
- Chuck Size: Not Included
- Number of Speeds: Variable
- Capacity Steel: 1 3/8 in
- Spindle Speed: 65 to 2000 rpm
- Base Size: 27 in x 19 in
- Table Work Surface: 18-1/8 in x 14-3/4 in
- Overall Depth: 38 3/16 in
- Overall Width: 27 in
- Capacity Cast Iron: 1 1/2 in
- Corded/Banded: Corded
- Corded/Cordless: Corded
- Spindle to Table: 30 1/4 in
- Spindle Taper: 3MT
- Number of T-Slots: 2
- Power Down Feed Included: No
- Max. Spindle To Base: 44 1/2 in
- Phase: 3
- Amps AC: 9.2
- Hz: 60
- Spindle Travel: 6 in
- Drilling Capacity Wood: Not Specified
- Table Slot Size: 5/8 in
- Overall Height: 79 1/2 in
- Includes: Chuck Guard
- Column Dia.: 4 1/2 in
- Base Width: 19 in
- Motor Voltage: 460V AC ; Three-Phase
- Drilling Capacity in Cast Iron: 1 1/2 in
- Guard Included: Yes
- Drilling Capacity in Stainless Steel: 1 in
- Tapping Capacity in Stainless Steel: 5/8 in
- Speed Adjustment: Mechanical Variable Speed Drive System
- Table Length: 22 in
- Drilling Capacity in Steel: 1 3/8 in
- Quill Diameter: 2 61/64 in
- Chuck Style: Keyed
- Maximum Spindle Speed: 2,000 RPM
- Table Load Capacity: 154 lb
- Speed Range: 65 to 2,000 RPM
- Table Slot Width: 5/8 in
- Power Source: Corded
- Minimum Spindle Speed: 245 RPM
- Radial Arm: No
- Current: 9.2 A
- Tapping Compatible: Yes
- Spindle Speed Range: 245 RPM – 2,000 RPM
- Drilling Capacity in Wood: 1 1/2 in
- Table Slot: Yes
- Column Diameter: 4 1/2 in
- Primary Material Application: Metal
- Maximum Overall Height: 79 1/2 in
- Speed Control: Variable
- Horsepower: 2 hp
- Coolant System: Yes
- Tapping Capacity in Steel: 3/4 in
- Table Shape: Rectangular
- Spindle-to-Column Distance: 10 7/16 in
- Table Width: 18 3/4 in
- Drill Spindle Travel: 6 in – 7 in
- Maximum Spindle-to-Base Height: 44 1/2 in
- Standards: CSA Certified, CUS Certified
- Maximum Spindle-to-Table Height: 30 1/4 in
- Drill Press Application: Drilling, Tapping
- Overall Length: 38 1/8 in
- Number of Spindle Speeds: Variable
- Base Length: 27 in
- Drill Press Type: Floor Stand
- Nominal Voltage: 460V AC
- Country of Origin (subject to change): Taiwan, Province of China
