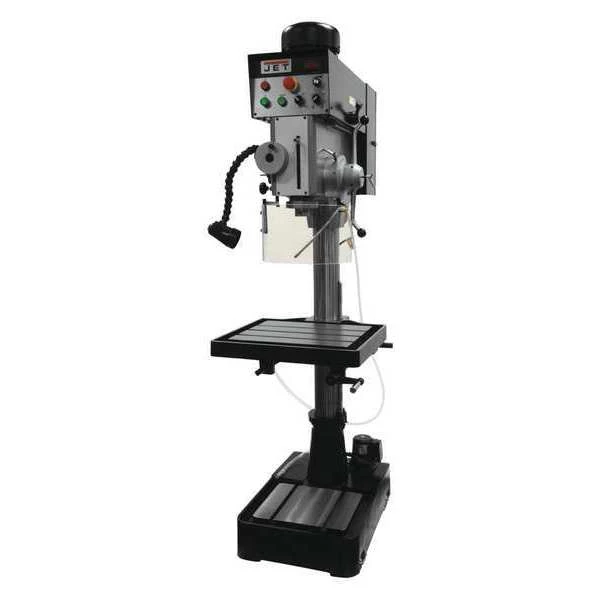

Jet Floor Drill Press, Belt Drive, 2 hp, 460 V, 20 in Swing, Variable Speed
Original price was: $524.00.$97.99Current price is: $97.99.
Production Drill Presses, Floor Drill Press, Drive Type Belt, Swing 20 in, Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1 3/8 in, Capacity Cast Iron 1 1/2 in, Drilling Capacity Wood Not Specified, Includes Chuck Guard, Power Down Feed Included Yes, Voltage 460, Amps AC 9.2, Number of Speeds Variable, Chuck Size Not Included, Spindle Speed 65 to 2000 rpm, Spindle Travel 6 in, Base Size 27 in x 19 in, Table Work Surface 18-1/8 in x 14-3/4 in, Hz 60, Phase 3, Number of T-Slots 2
Jet #JDP20EVST-460-PDF Specifications
- Zoro #: G7483458
- Mfr #: JDP20EVST-460-PDF
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 20 in
- Voltage: 460
- Motor HP: 2 hp
- Chuck Size: Not Included
- Number of Speeds: Variable
- Capacity Steel: 1 3/8 in
- Spindle Speed: 65 to 2000 rpm
- Spindle Taper: 3MT
- Includes: Chuck Guard
- Base Size: 27 in x 19 in
- Table Work Surface: 18-1/8 in x 14-3/4 in
- Hz: 60
- Capacity Cast Iron: 1 1/2 in
- Amps AC: 9.2
- Corded/Banded: Corded
- Table Slot Size: 5/8 in
- Spindle Travel: 6 in
- Overall Height: 79 1/2 in
- Overall Depth: 38 3/16 in
- Phase: 3
- Column Dia.: 4 1/2 in
- Power Down Feed Included: Yes
- Spindle to Table: 30 1/4 in
- Number of T-Slots: 2
- Max. Spindle To Base: 44 1/2 in
- Drilling Capacity Wood: Not Specified
- Corded/Cordless: Corded
- Overall Width: 27 in
- Standards: CSA Certified, CUS Certified
- Tapping Compatible: Yes
- Drilling Capacity in Steel: 2 in
- Drilling Capacity in Wood: 2 5/32 in
- Table Slot: Yes
- Drilling Capacity in Cast Iron: 2 5/32 in
- Table Shape: Rectangular
- Speed Adjustment: Mechanical Variable Speed Drive System
- Motor Voltage: 460V AC ; Three-Phase
- Quill Diameter: 2 61/64 in
- Spindle Speed Range: 225 RPM – 2,000 RPM
- Number of Spindle Speeds: Variable
- Speed Control: Variable
- Drilling Capacity in Stainless Steel: 1 3/8 in
- Drill Press Application: Drilling
- Table Load Capacity: 154 lb
- Primary Material Application: Metal
- Horsepower: 2 hp
- Table Length: 22 in
- Power Source: Corded
- Overall Length: 42 1/2 in
- Base Length: 27 in
- Minimum Spindle Speed: 225 RPM
- Coolant System: Yes
- Drill Spindle Travel: 6 in – 7 in
- Guard Included: Yes
- Table Slot Width: 5/8 in
- Chuck Style: Keyed
- Table Width: 18 3/4 in
- Maximum Spindle-to-Base Height: 44 11/16 in
- Column Diameter: 4 1/2 in
- Radial Arm: No
- Maximum Spindle Speed: 2,000 RPM
- Speed Range: 65 to 2,000 RPM
- Current: 9.2 A
- Tapping Capacity in Stainless Steel: 3/4 in
- Base Width: 19 in
- Maximum Spindle-to-Table Height: 25 1/2 in
- Drill Press Type: Floor Stand
- Spindle-to-Column Distance: 10 7/16 in
- Tapping Capacity in Steel: 1 in
- Maximum Overall Height: 78 3/4 in
- Nominal Voltage: 460V AC
- Country of Origin (subject to change): Taiwan, Province of China
