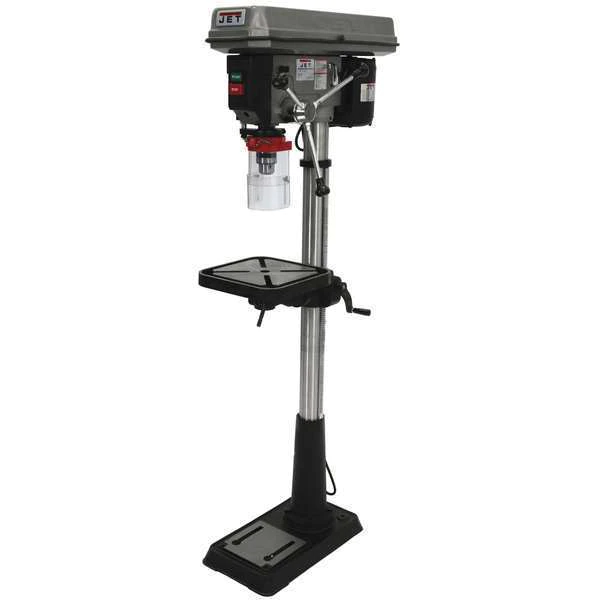

Jet Floor Drill Press, Belt Drive, 3/4 hp, 115/230 V, 15 in Swing, 16 Speed
Original price was: $590.00.$94.99Current price is: $94.99.
Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 15 in, Spindle-to-Column Distance 7 1/2 in, Horsepower 3/4 hp, Voltage 115/230V AC, Spindle Taper MT2, Number of Speeds 16, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 1 7/8 in, Drilling Capacity in Steel 1/2 in
Jet #354400 Specifications
- Zoro #: G2169006
- Mfr #: 354400
- Drill Press Product Grouping: General Purpose Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 15 in
- Voltage: 115/230
- Motor HP: 3/4 hp
- Chuck Size: 5/8 in
- Number of Speeds: 16
- Capacity Steel: 1/2 in
- Spindle Speed: 200 to 3630 rpm
- Corded/Banded: Corded
- Phase: 1
- Includes: Chuck with Key
- Quill Dia.: 1 7/8 in
- Overall Depth: 31 in
- Hz: 60
- Spindle Travel: 3 1/8 in
- Power Down Feed Included: No
- Spindle to Table: 24 1/2 in
- Spindle Taper: MT2
- Column Dia.: 2 7/8 in
- Number of T-Slots: 0
- Overall Height: 63 1/2 in
- Tilting Angle: 45 Degrees
- Amps AC: 9.0/4.5
- Drilling Capacity Wood: Not Specified
- Capacity Cast Iron: 5/8 in
- Corded/Cordless: Corded
- Base Size: 11 in x 19-1/2 in
- Overall Width: 13 3/8 in
- Max. Spindle To Base: 48 3/4 in
- Table Work Surface: 9-1/2 in x 9-1/2 in
- Motor Voltage: 115/230V AC ; Single-Phase
- Maximum Spindle Speed: 3,630 RPM
- Speed Range: 200 to 3,630 RPM
- Chuck Capacity: 5/8 in
- Chuck Style: Keyed
- Table Length: 11 1/2 in
- Number of Spindle Speeds: 16
- Minimum Spindle Speed: 200 RPM
- Table Slot: Yes
- Spindle-to-Column Distance: 7 1/2 in
- Guard Included: Yes
- Overall Length: 31 in
- Drilling Capacity in Stainless Steel: 1/2 in
- Drill Press Application: Drilling
- Primary Material Application: Metal
- Maximum Overall Height: 63 in
- Table Load Capacity: 44 lb
- Base Length: 11 in
- Power Source: Corded
- Radial Arm: No
- Speed Adjustment: Step Pulley
- Drilling Capacity in Wood: 5/8 in
- Drill Spindle Travel: 3 in – 4 in
- Table Shape: Square
- Table Width: 11 1/2 in
- Spindle Speed Range: 200 RPM – 3,630 RPM
- Current: 9/4.5 A
- Base Width: 19 1/2 in
- Quill Diameter: 1 7/8 in
- Speed Control: Fixed
- Horsepower: 3/4 hp
- Drilling Capacity in Steel: 1/2 in
- Table Tilt: 45 Degrees
- Maximum Spindle-to-Base Height: 48 in
- Coolant System: No
- Drilling Capacity in Cast Iron: 5/8 in
- Column Diameter: 2 7/8 in
- Drill Press Type: Floor Stand
- Maximum Spindle-to-Table Height: 24 in
- Nominal Voltage: 115/230V AC
- Country of Origin (subject to change): China
