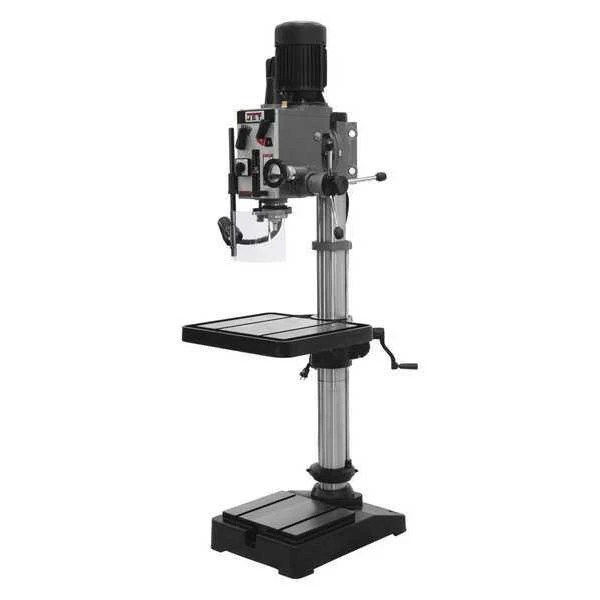

Jet Floor Drill Press, Geared Head Drive, 2 hp, 240 V, 20 in Swing, 12 Speed
Original price was: $590.00.$91.99Current price is: $91.99.
Production Drill Presses, Floor Drill Press, Drive Type Geared Head, Swing 20 in, Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1 1/4 in, Capacity Cast Iron 1 1/2 in, Drilling Capacity Wood Not Specified, Includes Chuck Arbor, Draw Bar, Power Down Feed Included No, Voltage 240, Number of Speeds 12, Chuck Size Not Included, Spindle Speed 60 to 3000 rpm, Spindle Travel 5 in, Base Size 26 in x 18 in, Table Work Surface 21-1/4 in x 18-1/2 in, Hz 60, Phase 3, Number of T-Slots 2
Jet #354020 Specifications
- Zoro #: G9947357
- Mfr #: 354020
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Geared Head
- Swing: 20 in
- Voltage: 240
- Motor HP: 2 hp
- Chuck Size: Not Included
- Number of Speeds: 12
- Capacity Steel: 1 1/4 in
- Spindle Speed: 60 to 3000 rpm
- Overall Depth: 24 in
- Power Down Feed Included: No
- Table Slot Size: 5/8 in
- Column Dia.: 4 1/2 in
- Hz: 60
- Number of T-Slots: 2
- Corded/Cordless: Corded
- Base Size: 26 in x 18 in
- Spindle to Table: 30 1/2 in
- Table Work Surface: 21-1/4 in x 18-1/2 in
- Overall Width: 32 in
- Spindle Taper: 3MT
- Capacity Cast Iron: 1 1/2 in
- Drilling Capacity Wood: Not Specified
- Includes: Chuck Arbor, Draw Bar
- Spindle Travel: 5 in
- Max. Spindle To Base: 44 15/16 in
- Overall Height: 71 in
- Corded/Banded: Corded
- Quill Dia.: 3 in
- Phase: 3
- Motor Voltage: 230V AC ; Three-Phase
- Drilling Capacity in Cast Iron: 1 1/2 in
- Overall Length: 32 in
- Primary Material Application: Metal
- Drill Press Type: Floor Stand
- Maximum Overall Height: 71 in
- Spindle-to-Column Distance: 10 in
- Speed Control: Fixed
- Coolant System: No
- Table Length: 21 3/4 in
- Number of Spindle Speeds: 12
- Minimum Spindle Speed: 60 RPM
- Radial Arm: No
- Horsepower: 2 hp
- Current: 3.2/3.2 A
- Power Source: Corded
- Guard Included: Yes
- Drilling Capacity in Steel: 1 1/4 in
- Quill Diameter: 3 in
- Base Width: 18 in
- Speed Range: 60 to 3,000 RPM
- Drilling Capacity in Wood: 1 1/2 in
- Maximum Spindle Speed: 3,000 RPM
- Base Length: 26 in
- Speed Adjustment: Gear Head
- Maximum Spindle-to-Table Height: 30 1/2 in
- Drilling Capacity in Stainless Steel: 1 in
- Chuck Style: Keyed
- Table Width: 19 1/2 in
- Table Shape: Rectangular
- Column Diameter: 4 1/2 in
- Spindle Speed Range: 60 RPM – 3,000 RPM
- Table Slot Width: 5/8 in
- Drill Press Application: Drilling
- Maximum Spindle-to-Base Height: 44 15/16 in
- Table Slot: Yes
- Table Load Capacity: 275 lb
- Drill Spindle Travel: 5 in – 6 in
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): Taiwan, Province of China
