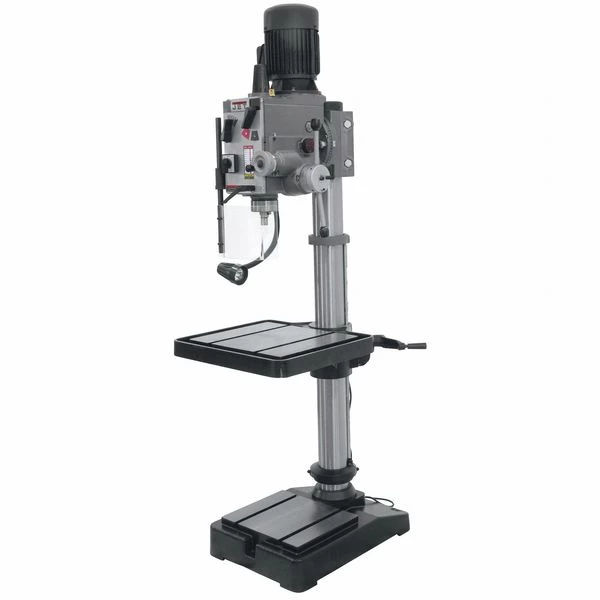

Jet Floor Drill Press, Geared Head Drive, 2 hp, 240 V, 20 in Swing, 12 Speed
Original price was: $465.00.$94.99Current price is: $94.99.
Production Drill Presses, Floor Drill Press, Drive Type Geared Head, Swing 20 in, Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1 1/4 in, Capacity Cast Iron 1 1/2 in, Drilling Capacity Wood Not Specified, Includes Draw Bar, Drill Chuck Arbor, Power Down Feed Included Yes, Voltage 240, Number of Speeds 12, Chuck Size Not Included, Spindle Speed 60 to 3000 rpm, Spindle Travel 4 1/2 in, Base Size 26 in x 18 in, Table Work Surface 21-1/4 in x 18-1/2 in, Hz 60, Phase 3, Number of T-Slots 2
Jet #354024 Specifications
- Zoro #: G9947332
- Mfr #: 354024
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Geared Head
- Swing: 20 in
- Voltage: 240
- Motor HP: 2 hp
- Chuck Size: Not Included
- Number of Speeds: 12
- Capacity Steel: 1 1/4 in
- Spindle Speed: 60 to 3000 rpm
- Corded/Cordless: Corded
- Number of T-Slots: 2
- Spindle Taper: 3MT
- Drilling Capacity Wood: Not Specified
- Quill Dia.: 3 in
- Corded/Banded: Corded
- Overall Width: 32 in
- Overall Height: 71 in
- Power Down Feed Included: Yes
- Spindle to Table: 30 1/2 in
- Spindle Travel: 4 1/2 in
- Base Size: 26 in x 18 in
- Capacity Cast Iron: 1 1/2 in
- Includes: Draw Bar, Drill Chuck Arbor
- Max. Spindle To Base: 44 5/16 in
- Phase: 3
- Table Work Surface: 21-1/4 in x 18-1/2 in
- Table Slot Size: 5/8 in
- Hz: 60
- Overall Depth: 24 in
- Column Dia.: 4 1/2 in
- Table Slot: Yes
- Drilling Capacity in Wood: 1 1/2 in
- Maximum Spindle-to-Table Height: 30 1/2 in
- Drill Press Application: Drilling
- Maximum Overall Height: 71 in
- Quill Diameter: 3 in
- Drill Press Type: Floor Stand
- Table Slot Width: 5/8 in
- Overall Length: 32 in
- Drilling Capacity in Steel: 1 1/4 in
- Radial Arm: No
- Motor Voltage: 230V AC ; Three-Phase
- Minimum Spindle Speed: 60 RPM
- Power Source: Corded
- Spindle Speed Range: 60 RPM – 3,000 RPM
- Drilling Capacity in Stainless Steel: 1 in
- Maximum Spindle Speed: 3,000 RPM
- Number of Spindle Speeds: 12
- Speed Control: Fixed
- Table Load Capacity: 275 lb
- Chuck Style: Keyed
- Primary Material Application: Metal
- Table Shape: Rectangular
- Spindle-to-Column Distance: 10 in
- Table Length: 21 3/4 in
- Drill Spindle Travel: 4 in – 5 in
- Maximum Spindle-to-Base Height: 44 15/16 in
- Horsepower: 2 hp
- Drilling Capacity in Cast Iron: 1 1/2 in
- Speed Adjustment: Gear Head
- Base Width: 18 in
- Coolant System: No
- Guard Included: Yes
- Current: 3.2/3.2 A
- Speed Range: 60 to 3,000 RPM
- Base Length: 26 in
- Table Width: 19 1/2 in
- Column Diameter: 4 1/2 in
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): Taiwan, Province of China
