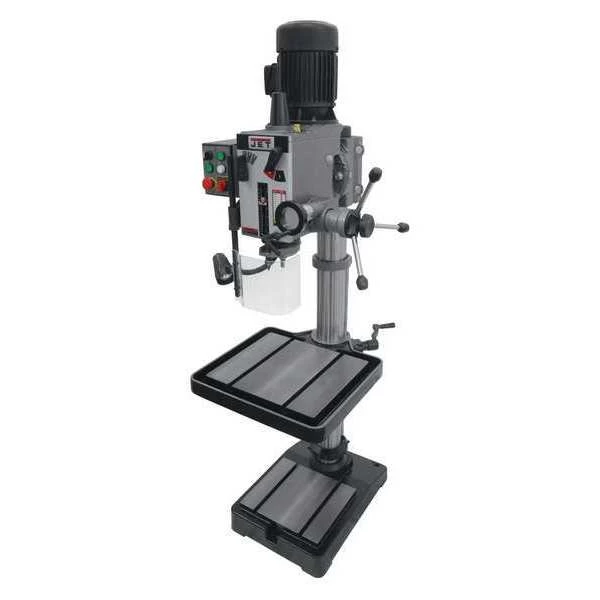

Jet Floor Drill Press, Geared Head Drive, 2 hp, 240 V, 20 in Swing, 12 Speed
Original price was: $525.00.$98.99Current price is: $98.99.
Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Tapping, Speed Control Fixed, Speed Adjustment Gear Head, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 2 hp, Voltage 230V AC, Spindle Taper 3MT, Number of Speeds 12, Chuck Size 1/2 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 3 in, Tapping Capacity in Steel 15/16 in
Jet #354022 Specifications
- Zoro #: G9947341
- Mfr #: 354022
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Geared Head
- Swing: 20 in
- Voltage: 240
- Motor HP: 2 hp
- Chuck Size: Not Included
- Number of Speeds: 12
- Capacity Steel: 1 1/4 in
- Spindle Speed: 120 to 1500 rpm
- Table Work Surface: 21-1/4 in x 18-1/2 in
- Drilling Capacity Wood: Not Specified
- Capacity Cast Iron: 1 1/2 in
- Includes: Tapping head
- Spindle to Table: 30 1/2 in
- Hz: 60
- Phase: 3
- Column Dia.: 4 1/2 in
- Overall Height: 71 in
- Corded/Banded: Corded
- Overall Depth: 24 in
- Quill Dia.: 3 in
- Number of T-Slots: 2
- Power Down Feed Included: No
- Spindle Taper: 3MT
- Spindle Travel: 4 1/2 in
- Overall Width: 32 in
- Base Size: 26 in x 18 in
- Corded/Cordless: Corded
- Table Slot Size: 5/8 in
- Max. Spindle To Base: 44 5/16 in
- Speed Control: Fixed
- Minimum Spindle Speed: 60 RPM
- Reversible: Yes
- Base Length: 26 in
- Radial Arm: No
- Coolant System: No
- Drilling Capacity in Steel: 1 1/4 in
- Speed Range: 120 to 1,500 RPM
- Table Shape: Rectangular
- Table Slot Width: 5/8 in
- Table Slot: Yes
- Number of Spindle Speeds: 12
- Drilling Capacity in Wood: 1 1/2 in
- Horsepower: 2 hp
- Drilling Capacity in Stainless Steel: 1 in
- Tapping Compatible: Yes
- Guard Included: Yes
- Drill Press Application: Drilling, Tapping
- Primary Material Application: Metal
- Table Length: 21 3/4 in
- Table Width: 19 1/2 in
- Tapping Capacity in Stainless Steel: 3/4 in
- Base Width: 18 in
- Drilling Capacity in Cast Iron: 1 1/2 in
- Drill Press Type: Floor Stand
- Maximum Spindle Speed: 3,000 RPM
- Current: 3.2/3.2 A
- Spindle Speed Range: 60 RPM – 3,000 RPM
- Drill Spindle Travel: 4 in – 5 in
- Maximum Spindle-to-Table Height: 30 1/2 in
- Maximum Spindle-to-Base Height: 44 5/16 in
- Spindle-to-Column Distance: 10 in
- Chuck Style: Keyed
- Tapping Capacity in Steel: 15/16 in
- Speed Adjustment: Gear Head
- Table Load Capacity: 275 lb
- Column Diameter: 4 1/2 in
- Overall Length: 32 in
- Power Source: Corded
- Quill Diameter: 3 in
- Maximum Overall Height: 71 in
- Motor Voltage: 230V AC ; Three-Phase
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): Taiwan, Province of China
