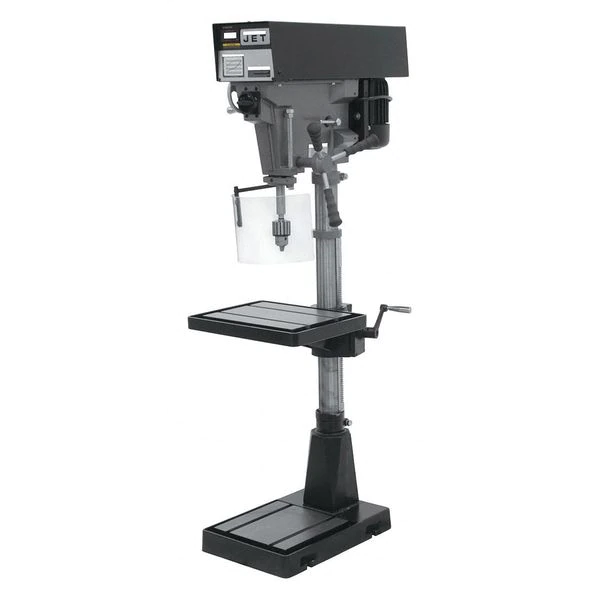

Jet Floor Drill Press, Spline Drive, 1 hp, 115/230 V, 15 in Swing, Variable Speed
Original price was: $405.00.$98.99Current price is: $98.99.
Production Drill Presses, Floor Drill Press, Drive Type Spline, Swing 15 in, Spindle Taper 2MT, Motor HP 1 hp, Capacity Steel 1/2 in, Capacity Cast Iron 5/8 in, Drilling Capacity Wood Not Specified, Power Down Feed Included No, Voltage 115/230, Amps AC 16.0/8.0, Number of Speeds Variable, Chuck Size 1/2 in, Spindle Speed 400 to 5000 rpm, Spindle Travel 6 in, Base Size 10-1/2 in x 15 in, Table Work Surface 12-1/2 in x 14-1/2 in, Hz 60, Phase 1, Number of T-Slots 2, Table Slot Size 1/2 in
Jet #354550 Specifications
- Zoro #: G9881864
- Mfr #: 354550
- Promotion Restriction: Not eligible for promotion
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Spline
- Swing: 15 in
- Voltage: 115/230
- Motor HP: 1 hp
- Chuck Size: 1/2 in
- Number of Speeds: Variable
- Capacity Steel: 1/2 in
- Spindle Speed: 400 to 5000 rpm
- Corded/Cordless: Corded
- Column Dia.: 3 in
- Spindle to Table: 25 3/4 in
- Amps AC: 16.0/8.0
- Quill Dia.: 2 1/4 in
- Overall Depth: 30 in
- Overall Width: 20 in
- Includes: LED Readout
- Corded/Banded: Corded
- Base Size: 10-1/2 in x 15 in
- Drilling Capacity Wood: Not Specified
- Spindle Taper: 2MT
- Hz: 60
- Spindle Travel: 6 in
- Max. Spindle To Base: 47 1/2 in
- Table Slot Size: 1/2 in
- Capacity Cast Iron: 5/8 in
- Overall Height: 71 in
- Number of T-Slots: 2
- Phase: 1
- Power Down Feed Included: No
- Table Work Surface: 12-1/2 in x 14-1/2 in
- Table Length: 15 in
- Power Source: Corded
- Drilling Capacity in Wood: 5/8 in
- Spindle Speed Range: 400 RPM – 5,000 RPM
- Quill Diameter: 2 1/4 in
- Drilling Capacity in Steel: 1/2 in
- Chuck Style: Keyed
- Column Diameter: 3 in
- Radial Arm: No
- Speed Control: Variable
- Coolant System: No
- Speed Range: 400 to 5,000 RPM
- Maximum Overall Height: 71 in
- Drill Spindle Travel: 6 in – 7 in
- Drill Press Type: Floor Stand
- Primary Material Application: Metal
- Number of Spindle Speeds: Variable
- Drilling Capacity in Stainless Steel: 25/64 in
- Base Width: 14 1/4 in
- Table Shape: Rectangular
- Drill Press Application: Drilling
- Base Height: 3 1/8 in
- Maximum Spindle-to-Base Height: 44 1/2 in
- Speed Adjustment: Mechanical Variable Speed Drive System
- Guard Included: Yes
- Maximum Spindle-to-Table Height: 25 3/4 in
- Spindle-to-Column Distance: 7 1/2 in
- Horsepower: 1 hp
- Table Slot: Yes
- Table Slot Width: 1/2 in
- Current: 16/8 A
- Chuck Capacity: 1/2 in
- Minimum Spindle Speed: 400 RPM
- Overall Length: 30 in
- Motor Voltage: 115/230V AC ; Single-Phase
- Table Load Capacity: 90 lb
- Table Width: 18 in
- Drilling Capacity in Cast Iron: 5/8 in
- Maximum Spindle Speed: 5,000 RPM
- Base Length: 20 1/2 in
- Nominal Voltage: 115/230V AC
- Country of Origin (subject to change): Taiwan, Province of China
