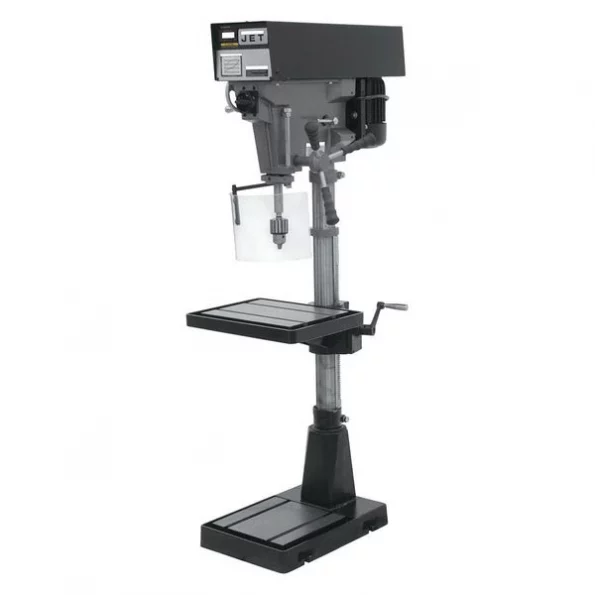

Jet Floor Drill Press, Spline Drive, 1 hp, 230/460 V, 15 in Swing, Variable Speed
Original price was: $521.00.$91.99Current price is: $91.99.
Production Drill Presses, Floor Drill Press, Drive Type Spline, Swing 15 in, Spindle Taper 2MT, Motor HP 1 hp, Capacity Steel 1/2 in, Capacity Cast Iron 5/8 in, Drilling Capacity Wood Not Specified, Includes LED Readout, Power Down Feed Included No, Voltage 230/460, Amps AC 6.2/3.1, Number of Speeds Variable, Chuck Size 1/2 in, Spindle Speed 400 to 5000 rpm, Spindle Travel 6 in, Base Size 10-1/2 in x 15 in, Table Work Surface 12-1/2 in x 14-1/2 in, Hz 60, Phase 3, Number of T-Slots 2
Jet #354551 Specifications
- Zoro #: G3264177
- Mfr #: 354551
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Spline
- Swing: 15 in
- Voltage: 230/460
- Motor HP: 1 hp
- Chuck Size: 1/2 in
- Number of Speeds: Variable
- Capacity Steel: 1/2 in
- Spindle Speed: 400 to 5000 rpm
- Quill Dia.: 2 1/4 in
- Amps AC: 6.2/3.1
- Table Work Surface: 12-1/2 in x 14-1/2 in
- Max. Spindle To Base: 47 1/2 in
- Overall Depth: 30 in
- Spindle Taper: 2MT
- Drilling Capacity Wood: Not Specified
- Includes: LED Readout
- Corded/Banded: Corded
- Number of T-Slots: 2
- Spindle to Table: 25 3/4 in
- Base Size: 10-1/2 in x 15 in
- Overall Height: 71 in
- Column Dia.: 3 in
- Corded/Cordless: Corded
- Hz: 60
- Table Slot Size: 1/2 in
- Overall Width: 20 in
- Power Down Feed Included: No
- Spindle Travel: 6 in
- Phase: 3
- Capacity Cast Iron: 5/8 in
- Overall Length: 30 in
- Maximum Spindle Speed: 5,000 RPM
- Minimum Spindle Speed: 400 RPM
- Base Height: 3 1/8 in
- Speed Range: 400 to 5,000 RPM
- Drilling Capacity in Cast Iron: 5/8 in
- Table Slot: Yes
- Table Width: 18 in
- Column Diameter: 3 in
- Drilling Capacity in Wood: 5/8 in
- Base Length: 20 1/2 in
- Chuck Capacity: 1/2 in
- Table Length: 15 in
- Spindle Speed Range: 400 RPM – 5,000 RPM
- Horsepower: 1 hp
- Drilling Capacity in Steel: 1/2 in
- Drill Press Application: Drilling
- Drill Press Type: Floor Stand
- Spindle-to-Column Distance: 7 1/2 in
- Maximum Spindle-to-Table Height: 25 3/4 in
- Number of Spindle Speeds: Variable
- Table Load Capacity: 90 lb
- Chuck Style: Keyed
- Speed Adjustment: Mechanical Variable Speed Drive System
- Drilling Capacity in Stainless Steel: 25/64 in
- Power Source: Corded
- Motor Voltage: 230/460V AC ; Three-Phase
- Drill Spindle Travel: 6 in – 7 in
- Table Shape: Rectangular
- Maximum Overall Height: 71 in
- Maximum Spindle-to-Base Height: 44 1/2 in
- Guard Included: Yes
- Radial Arm: No
- Coolant System: No
- Table Slot Width: 1/2 in
- Speed Control: Variable
- Quill Diameter: 2 1/4 in
- Current: 6.2/3.1 A
- Primary Material Application: Metal
- Base Width: 14 1/4 in
- Nominal Voltage: 230/460V AC
- Country of Origin (subject to change): Taiwan, Province of China
