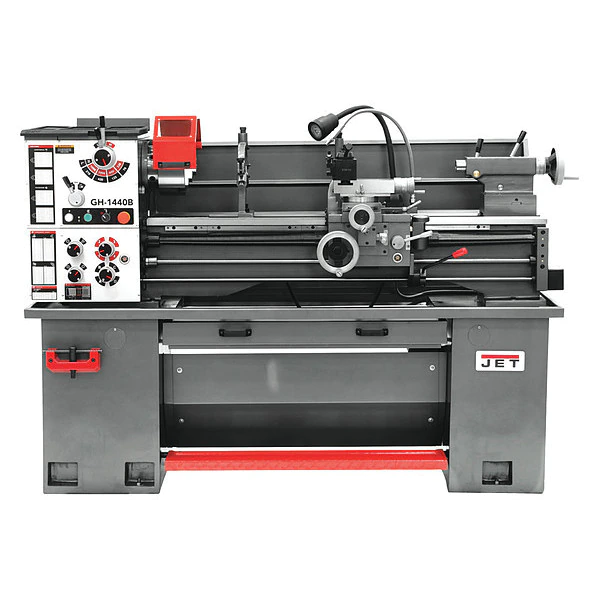

Jet GH-1440B GH BNCH LTH W DP500N
Original price was: $450.00.$94.99Current price is: $94.99.
Lathes, Distance Between Centers 36 7/8 in, Voltage 230V AC, Horsepower 2 hp, Min. Spindle Speed 70 RPM, Application Metal Turning, Overall Height 76 in, Overall Length 75 in, Overall Width 30 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT4, Spindle Nose Type D1-5 Camlock
Jet #323446 Specifications
- Zoro #: G1894404
- Mfr #: 323446
- Item: Lathes
- Phase: Single
- Voltage: 230V AC
- Frequency: 60 Hz
- Horsepower: 2 hp
- Overall Width: 30 in
- Number of Spindle Speeds: 8
- Overall Height: 76 in
- Overall Length: 75 in
- Tailstock Taper: MT4
- Min. Spindle Speed: 70 RPM
- Max. Metric Thread: 7 mm
- Min. Metric Thread: 0.4 mm
- Min. Cross Feed: 0.007 in
- Application: Metal Turning
- Bed Width: 8 in
- Number of Metric Threads: 26
- Swing Over Bed: 14 in
- Distance Between Centers: 36 7/8 in
- Spindle Bore: 2 in
- Swing In Gap: 20 in
- Max. Threads per Inch: 56
- Sound Level: 88 dB
- Number of Inch Threads: 34
- Max. Cross Feed: 0.0187 in
- Max. Spindle Speed: 1,800 RPM
- Min. Threads per Inch: 4
- Swing Over Cross Slide: 8 in
- Spindle Nose Type: D1-5 Camlock
- Country of Origin (subject to change): China
