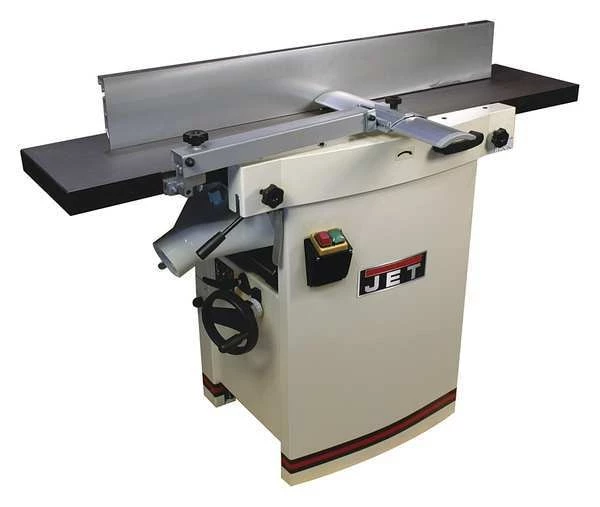

Jet Jointer, Cast Iron, 3 HP
Original price was: $514.00.$95.99Current price is: $95.99.
Jointer, Jointing Capacity (In.) 12 in, Rabbeting Capacity (In.) 1/2 in, Depth of Cut (In.) 1/8 in, HP 3 hp, 60 Hz, Table Length (In.) 55 in, Table Width (In.) 12 in, Tilting Angle (Deg.) 90 to 45R, No Load RPM 5,500 RPM, Cast Iron, Features Helical Cutter Head, Overall Height (In.) 40 in, Overall Width (In.) 34 in, Overall Length (In.) 55 in, Tool Weight (Lb.) 500
Jet #708476 Specifications
- Zoro #: G3462807
- Mfr #: 708476
- Item: Jointer
- Jointing Capacity (In.): 12 in
- Depth of Cut (In.): 1/8 in
- Rabbeting Capacity (In.): 1/2 in
- HP: 3 hp
- No Load RPM: 5,500 RPM
- Corded/Cordless: Corded
- Table Width (In.): 12 in
- Construction: Cast iron
- Hz: 60
- Tilting Angle (Deg.): 90 to 45R
- Table Length (In.): 55 in
- Overall Height (In.): 40 in
- Overall Width (In.): 34 in
- Corded/Banded: Corded
- Overall Length (In.): 55 in
- Features: Helical Cutter Head
- Tool Weight (Lb.): 500
- Country of Origin (subject to change): China
