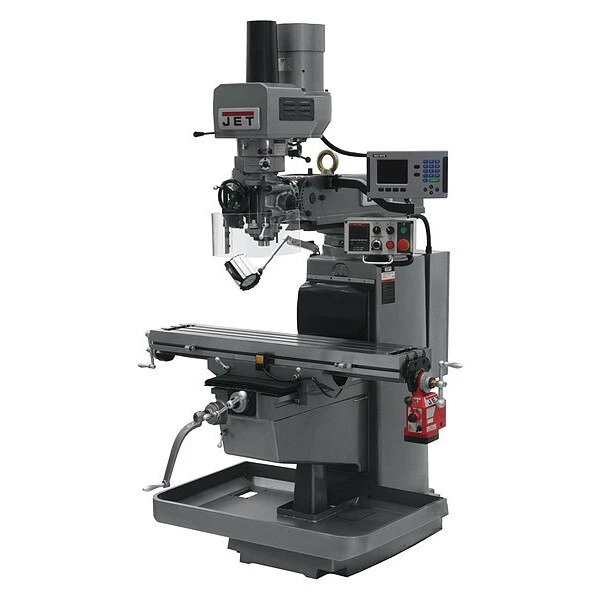

Jet Knee and Column Milling Machine
Original price was: $405.00.$94.99Current price is: $94.99.
Knee and Column Milling Machine, Table Length 10 in, Table Width 50 in, 3 hp, Table Load Capacity 840 lb, Phase 3, Voltage 230V, Longitudinal Travel 35-1/3 In., Cross Travel 14-3/4 In., Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,500 RPM
Jet #690620 Specifications
- Zoro #: G1897904
- Mfr #: 690620
- Item: Knee and Column Milling Machine
- Phase: 3
- Number of T-Slots: 3
- Min. Spindle Speed: 60 RPM
- Max. Spindle Speed: 4,500 RPM
- Min. Spindle to Column Distance: 4-3/4″
- Right-Hand Head Tilt: 90 Degrees
- Overall Length: 66″
- Backward Head Tilt Adjustment: 45 Degrees
- Spindle Travel Length: 5″
- Table Length: 10 in
- Number of Spindle Speeds: Variable
- Table Load Capacity: 840 lb
- Max. Spindle To Column Distance: 26-3/4″
- Left-Hand Head Tilt: 90 Degrees
- Table Width: 50 in
- Ram Travel Length: 15-7/8″
- Horsepower: 3 hp
- Forward Head Tilt: 45 Degrees
- Max. Spindle to Table Distance: 20 3/4 in
- Country of Origin (subject to change): Taiwan, Province of China
