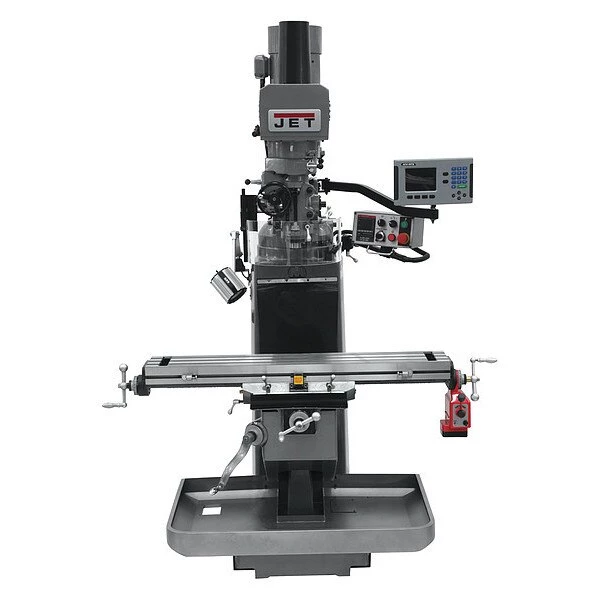

Jet Knee and Column Milling Machine
Original price was: $410.00.$92.99Current price is: $92.99.
Mill
Jet #690526 Specifications
- Zoro #: G1896355
- Mfr #: 690526
- Item: Knee and Column Milling Machine
- Phase: 3
- Number of T-Slots: 3
- Max. Spindle Speed: 4,500 RPM
- Table Load Capacity: 720 lb
- Min. Spindle Speed: 60 RPM
- Table Length: 9 in
- Forward Head Tilt: 45 Degrees
- Min. Spindle to Column Distance: 4-3/4″
- Max. Spindle to Table Distance: 20 3/4 in
- Horsepower: 3 hp
- Left-Hand Head Tilt: 90 Degrees
- Ram Travel Length: 15-1/4″
- Backward Head Tilt Adjustment: 45 Degrees
- Overall Length: 67″
- Table Width: 49 in
- Spindle Travel Length: 5″
- Max. Spindle To Column Distance: 18-1/8″
- Number of Spindle Speeds: Variable
- Right-Hand Head Tilt: 90 Degrees
- Country of Origin (subject to change): Taiwan, Province of China
