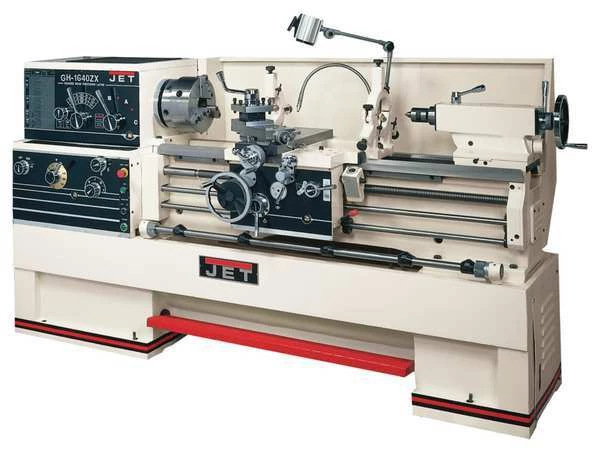

Jet Lathe, 230/460 Volts, 10 HP, 3 Phase
Original price was: $425.00.$93.99Current price is: $93.99.
Lathe, Distance Between Centers 80 in, Voltage 230V AC, Horsepower 10 hp, Min. Spindle Speed 25 RPM, Application Turning, Overall Height 136 in, Overall Length 136 in, Overall Width 40 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT3, Spindle Nose Type D1-4 Camlock
Jet #321610 Specifications
- Zoro #: G9879387
- Mfr #: 321610
- Item: Lathe
- Motor HP: 10
- Phase: Three
- Voltage: 230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 22
- Horsepower: 10 hp
- Number of Threads (In.): 61
- Number of Spindle Speeds: 12
- Cross Feed Rates: 12
- Thread Range (mm): .05 to 20
- Number of Threads (mm): 24
- Features: 3-1/8 in Bore Spindle is Supported by Two Tapered Bearings and One Ball Bearing of Chrome Molybdenum, Headstock Gears are Hardened, Ground and Shaved, Universal Gearbox Allows Inch, Metric, Diametral and Module Pitch Threads, No Change Gears Required, Carriage Features One-Shot Lubrication and Turcite-B on Bed Sliding Surfaces, T-Slotted Compound Slide Featuring Four-Way Tool Post, One Piece Cast Iron Base Absorbs Vibration Allowing Heavier Cuts, High Quality ANSI Class 50 Wear Resistant Cast Iron Bed Ways are Removable, Gap Allows Large Diameter Work, Five Position Automatic Carriage Stop Increases Productivity, Meehanite Castings, Acu-Rite 300S DRO
- Overall Width: 40 in
- Overall Height: 136 in
- Spindle Speed (RPM): 25 to 1800
- Spindle Bore (In.): 3-1/8
- Swing Over Cross Slide (In.): 13
- Tailstock Taper: MT3
- Gap Length (In.): 12-1/4
- Includes: (5) 12 in Faceplates, 10 in 3 Jaw Scroll Chuck with Top Reversing Jaws, Acu-Rite 300S DRO, Articulating LED Work Lamp, Centrally Located Controls with Jog Button, E-Stop on Carriage, Electronic Chuck Key Holder, Fitted Top Mats to Hold Tooling, Follow Rest, Foot Brake, Full Length Splash Guard and Coolant Return, Fully Integrated Coolant System, Large Capacity Steady Rest with Ball Bearing Tips, Live Center, Mounting Pads and Levelers, Quick Change Tool Post Set, Threading Dial, Tolerance Test Certificate, Tool Box and Adjusting Tools
- Overall Length: 136 in
- Distance Between Centers (In.): 80
- Carriage Travel (In.): 75
- Spindle Taper: MT-7
- Bed Width (In.): 13-3/8
- Thread Range (In.): 1-5/8 to 72
- Compound Travel (In.): 5-1/2
- Cross Travel (In.): 10
- Longitudinal Feed Rates: 12
- Tailstock Travel (In.): 5
- Swing In Gap (In.): 29-1/2
- Min. Metric Thread: 0.05 mm
- Number of Metric Threads: 24
- Swing Over Cross Slide: 13 in
- Min. Spindle Speed: 25 RPM
- Spindle Nose Type: D1-4 Camlock
- Min. Threads per Inch: 2
- Bed Width: 9 1/2 in
- Gap Length: 12 1/4 in
- Max. Spindle Speed: 1,800 RPM
- Max. Threads per Inch: 30
- Min. Cross Feed: 0.0006 in
- Max. Cross Feed: 0.0360 in
- Spindle Bore: 3 1/8 in
- Swing Over Bed: 22 in
- Max. Metric Thread: 20 mm
- Swing In Gap: 29 1/2 in
- Number of Inch Threads: 61
- Distance Between Centers: 80 in
- Sound Level: 88 dB
- Application: Turning
- Country of Origin (subject to change): China
