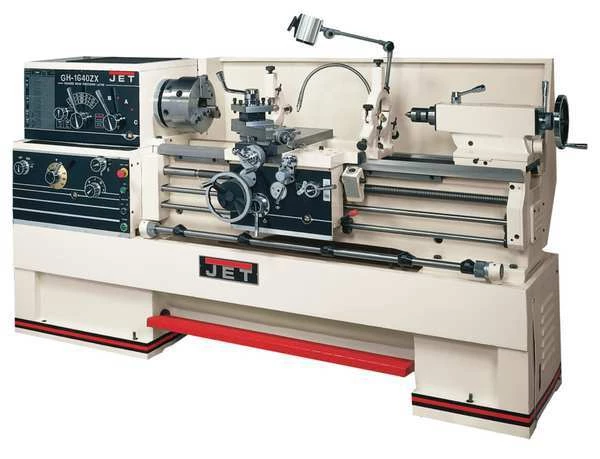

Jet Lathe, 230/460 Volts, 10 HP, 3 Phase
Original price was: $503.00.$97.99Current price is: $97.99.
Lathe, Distance Between Centers 80 in, Voltage 230/460, Horsepower 10, Min. Spindle Speed 25 RPM, Overall Height 48 7/8 in, Overall Length 136 in, Overall Width 40 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT5, Spindle Nose Type D1-8 Camlock
Jet #321567 Specifications
- Zoro #: G9879396
- Mfr #: 321567
- Item: Lathe
- Motor HP: 10
- Phase: Three
- Voltage: 230/460V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 22
- Horsepower: 10 hp
- Thread Range (In.): 1-5/8 to 72
- Carriage Travel (In.): 75
- Number of Threads (mm): 24
- Spindle Taper: MT-7
- Overall Height: 136 in
- Spindle Bore (In.): 3-1/8
- Number of Threads (In.): 61
- Longitudinal Feed Rates: 122
- Cross Travel (In.): 10
- Number of Spindle Speeds: 12
- Tailstock Travel (In.): 5
- Spindle Speed (RPM): 25 to 1800
- Swing Over Cross Slide (In.): 13
- Thread Range (mm): .05 to 20
- Distance Between Centers (In.): 80
- Overall Width: 40 in
- Features: 3-1/8 in Bore Spindle is Supported by Two Tapered Bearings and One Ball Bearing of Chrome Molybdenum, Headstock Gears are Hardened, Ground and Shaved, Universal Gearbox Allows Inch, Metric, Diametral and Module Pitch Threads, No Change Gears Required, Carriage Features One-Shot Lubrication and Turcite-B on Bed Sliding Surfaces, T-Slotted Compound Slide Featuring Four-Way Tool Post, One Piece Cast Iron Base Absorbs Vibration Allowing Heavier Cuts, High Quality ANSI Class 50 Wear Resistant Cast Iron Bed Ways are Removable, Gap Allows Large Diameter Work, Five Position Automatic Carriage Stop Increases Productivity, Meehanite Castings, Acu-Rite 200S DRO and Taper Attachment
- Swing In Gap (In.): 29-1/2
- Gap Length (In.): 12-1/4
- Bed Width (In.): 13-3/8
- Cross Feed Rates: 122
- Tailstock Taper: MT3
- Includes: (5) 12 in Faceplates, 10 in 3 Jaw Scroll Chuck with Top Reversing Jaws, Acu-Rite 300S DRO, Articulating LED Work Lamp, Centrally Located Controls with Jog Button, E-Stop on Carriage, Electronic Chuck Key Holder, Fitted Top Mats to Hold Tooling, Follow Rest, Foot Brake, Full Length Splash Guard and Coolant Return, Fully Integrated Coolant System, Large Capacity Steady Rest with Ball Bearing Tips, Live Center, Mounting Pads and Levelers, Quick Change Tool Post Set, Threading Dial, Tolerance Test Certificate, Tool Box and Adjusting Tools
- Overall Length: 136 in
- Compound Travel (In.): 5-1/8
- Number of Inch Threads: 61
- Min. Spindle Speed: 25 RPM
- Max. Threads per Inch: 72
- Max. Spindle Speed: 1,800 RPM
- Spindle Bore: 3 1/8 in
- Number of Metric Threads: 24
- Swing Over Cross Slide: 13 in
- Swing In Gap: 29 1/2 in
- Min. Cross Feed: 0.0006 in
- Max. Metric Thread: 20 mm
- Distance Between Centers: 80 in
- Spindle Nose Type: D1-4 Camlock
- Max. Cross Feed: 0.0360 in
- Min. Threads per Inch: 1 5/8
- Bed Width: 9 1/2 in
- Min. Metric Thread: 0.05 mm
- Swing Over Bed: 22 in
- Gap Length: 12 1/4 in
- Sound Level: 88 dB
- Application: Turning
- Country of Origin (subject to change): China
